CMX883

Features:

Automatic signal type scanning and IRQ on detection of valid Rx signals, level or RSSI
Tone generator for caller recognition tunes
Programmable power down control
Programmable signal detection thresholds
Low Power operation with !(R)Zero Power mod
Uncommitted Aux ADC with switchable input to monitor signals
Silent operation by removal of unwanted calls
XTCSS channel and data signalling
Voice processing facilities, including Tx and Rx gain setting and voice/subaudio filtering
C-BUS serial host interface
RF interface allowing 1 or 2 point modulation
Programmable soft limiter
Enhanced CTCSS and 23/24 bit DCS codecs
Zero Talkdown CTCSS decoder performanc prevents dropouts
All call code and monitor modes for CTCSS
Audio scrambler
Selectable voice companding

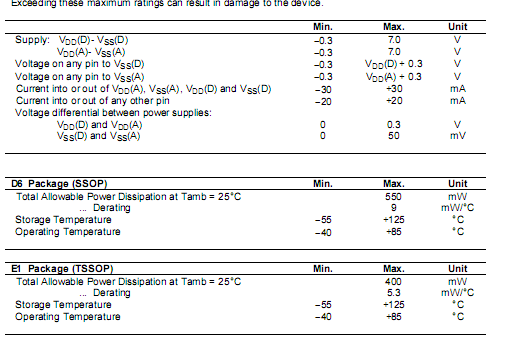

Specifications






Description

CMX883, a full-function half-duplex audio and signalling processor IC for FRS and PMR446 type facilities for both complex and simple end-designs. Under the control of the host |ìC, all voiceband requirementsare catered for: voiceband and sub-audio filtering, pre/de-emphasis, compression and expansion and audio routing and global level setting with single or two-point modulation in the transmit path. CMX883 combination of new and standard signalling functions of this product offer, under software control, increased functionality, versatility and privacy. Standard Extended-Code CTCSS and DCS are integrated with the new XTCSS code implementation. XTCSS provides additionaland improved squelch-centred privacy codes with the added advantage of !(R)silent operation!; no annoying interference from other suaudio users. XTCSS fitted radios enjoy more privacy and flexibility of operation.
CMX883 With ultra low power requirements and graduated powersave, this product only requires a smaller, lower-power C than existing FRS/PMR446 solutions. It is available in compact SSOP and TSSOP packages.
