CMS0401KL-3X

SPEAKER 8 OHMS 5W 40X40MM

product image

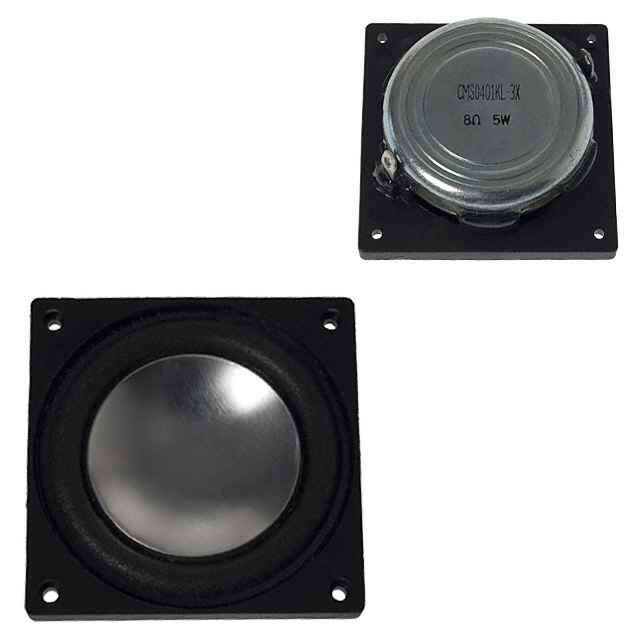

CMS0401KL-3X Picture
See larger image
SeekIC No. : 002845934 Detail

CMS0401KL-3X: SPEAKER 8 OHMS 5W 40X40MM

CMS0401KL-3X Data Sheet

floor Price/Ceiling Price

US $ 4.54~7.57 / Piece | Get Latest Price
Part Number:
CMS0401KL-3X
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $7.57
  • $7
  • $5.87
  • $4.92
  • $4.73
  • $4.54
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CMS Manufacturer: CUI Inc
Type: Magnetic Frequency Range: 390Hz ~ 20kHz
Impedance: 8 Ohm Sound Pressure Level: 86dB
Power - Rated: 5W Power - Max: 8W
Height: 14.80mm Size / Dimension: 40.10mm L x 40.10mm W
Dimensions : 14 mm x 20 mm x 3.4 mm Shape: Round, Square Frame
Termination: Solder Eyelet(s) Material - Cone: Mylar

Description

Manufacturer: CUI Inc
Type: Magnetic
Impedance: 8 Ohm
Material - Cone: Mylar
Material - Magnet: -
Termination: Solder Eyelet(s)
Sound Pressure Level: 86dB
Shape: Round, Square Frame
Series: CMS
Frequency Range: 390Hz ~ 20kHz
Height: 14.80mm
Power - Rated: 5W
Power - Max: 8W
Size / Dimension: 40.10mm L x 40.10mm W


Specifications

  • diameter: 40 mm x 40 mm
  • depth: 14.5 mm
  • impedance: 8Ω
  • s.p. level: 88 dB
  • resonance frequency: 440 Hz
  • frequency response: fo-20K
  • nominal input: 5.0W
  • handling capacity (max input): 8.0W
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationCMS0401KL-3X
    VendorCUI Inc
    CategoryAudio Products
    Frequency Range20Hz ~ 20kHz
    Impedance8 Ohm
    TypeMagnetic
    Size / Dimension40mm L x 40mm W x 14.5mm H
    Sound Pressure Level86dB
    Power - Rated5W
    Power - Max8W
    TerminationSolder Eyelet(s)
    Material - Cone-
    Material - Magnet-
    ShapeRound, Square Frame
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CMS0401KL 3X
    CMS0401KL3X
    102 1306 ND
    1021306ND
    102-1306
