CMPSH05-4C

PinoutSpecifications SYMBOL UNITS Peak Repetitive Reverse Voltage VRRM 40 V Continuous Forward Current IF 500 mA Peak Repetitive Forward Current, tp 1ms IFRM 3.5 A ...

product image

CMPSH05-4C Picture
See larger image
SeekIC No. : 004314839 Detail

CMPSH05-4C: PinoutSpecifications SYMBOL UNITS Peak Repetitive Reverse Voltage VRRM 40 V Continuous Forward Current IF ...

CMPSH05-4C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CMPSH05-4C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

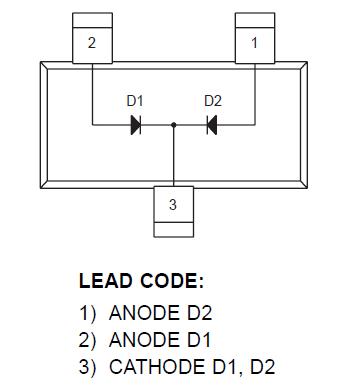

Connection Diagram


Specifications

  SYMBOL   UNITS
Peak Repetitive Reverse Voltage VRRM 40 V
Continuous Forward Current IF 500 mA
Peak Repetitive Forward Current, tp 1ms IFRM 3.5 A
Forward Surge Current, tp=8ms IFSM 10 A
Power Dissipation PD 350 mW
Operating and Storage
Junction Temperature TJ,Tstg -65 to +150 °C
Thermal Resistance JA 340 °C/W



Description

The CENTRAL SEMICONDUCTOR CMPSH05-4C is a Dual, Common Cathode HIGH CURRENT, LOW VF 40 volt Schottky Diode pair packaged in a space saving SOT-23F surface mount case. This device has been designed for small signal general purpose applications when small size and operational efficiency are prime requirements.
