CMPSH-3C

Schottky (Diodes & Rectifiers) Dual Cl Cathode

product image

CMPSH-3C Picture
See larger image
SeekIC No. : 00187203 Detail

CMPSH-3C: Schottky (Diodes & Rectifiers) Dual Cl Cathode

CMPSH-3C Data Sheet

floor Price/Ceiling Price

US $ .23~.32 / Piece | Get Latest Price
Part Number:
CMPSH-3C
Mfg:
Central Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.32
  • $.28
  • $.25
  • $.23
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Schottky Diodes Peak Reverse Voltage : 30 V
Forward Continuous Current : 0.1 A Max Surge Current : 0.75 A
Configuration : Dual Common Cathode Recovery Time : 5 ns
Forward Voltage Drop : 1 V Maximum Reverse Leakage Current : 0.5 uA at 25 V
Operating Temperature Range : - 65 C to + 150 C Mounting Style : SMD/SMT
Package / Case : SOT-23 Packaging : Reel

Description

Maximum Power Dissipation :
Mounting Style : SMD/SMT
Product : Schottky Diodes
Peak Reverse Voltage : 30 V
Forward Voltage Drop : 1 V
Packaging : Reel
Operating Temperature Range : - 65 C to + 150 C
Configuration : Dual Common Cathode
Package / Case : SOT-23
Recovery Time : 5 ns
Max Surge Current : 0.75 A
Forward Continuous Current : 0.1 A
Maximum Reverse Leakage Current : 0.5 uA at 25 V


Pinout

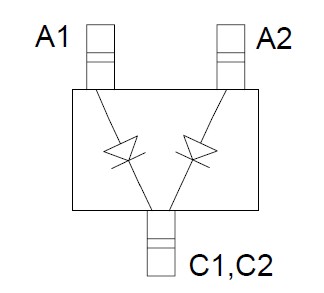

Connection Diagram






Specifications

SYMBOL UNITS
Peak Repetitive Reverse Voltage VRRM 30 V
Continuous Forward Current IF 100 mA
Peak Repetitive Forward Current IFRM 350 mA
Forward Surge Current, tp=10ms IFSM 750 mA
Power Dissipation PD 350 mW
Operating and Storage
Junction Temperature TJ,Tstg -65 to +150 °C
Thermal Resistance JA 357 °C/W





Description

The CENTRAL SEMICONDUCTOR CMPSH-3 Series types are Silicon Schottky diodes designed for surface mount fast switching applications requiring a low forward voltage drop.
