CMPD6263C

Mounting Style : SMD/SMT
Product : Schottky Diodes
Packaging : Reel
Operating Temperature Range : - 65 C to + 150 C
Peak Reverse Voltage : 70 V
Configuration : Dual Common Cathode
Package / Case : SOT-23
Forward Voltage Drop : 0.41 V at 0.001 A
Maximum Reverse Leakage Current : 0.2 uA at 50 V
Forward Continuous Current : 0.015 A
Max Surge Current : 0.05 A
Recovery Time : 50 ns
Maximum Power Dissipation : 350 mW

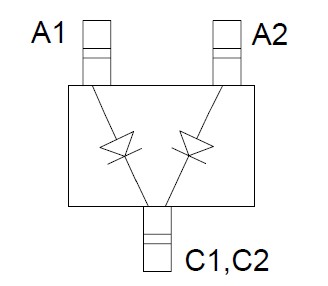

Pinout

Specifications

	SYMBOL		UNITS
Peak Repetitive Reverse Voltage	VRRM	70	V
Continuous Forward Current	IF	15	mA
Forward Surge Current, tp=1.0s	IFSM	50	mA
Power Dissipation	PD	350	mW
Operating and Storage
Junction Temperature	TJ,Tstg	-65 to +150	°C
Thermal Resistance	JA	357	°C/W

Description

The CENTRAL SEMICONDUCTOR CMPD6263 Series types are Silicon Schottky diodes designed for low current surface mount fast switching applications requiring a low forward voltage drop.
