CMP401

Features:

23 ns or 65 ns Propagation Delay
Single-Supply Operation
Compatible with +3 V and +5 V Logic
Separate Input and Output Sections
Low Power
Wide Input Range: 5 V to +3.9 V




Application

·Battery Operated Instrumentation
·Line Receivers
·Level Translators
·Read Channel Detection




Pinout








Specifications



Total Analog Supply Voltage . . . . . . . . . . . . . . . . . . . . . +16 V
Digital Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . +7 V
Analog Positive Supply-Digital Positive Supply . . . . 200 mV
Input Voltage2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±7 V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . ±9 V
Output Short-Circuit Duration to GND . . . . . . . . .. . Indefinite
Storage Temperature Range
P, S, RU Package . . . . . . . . . . . . . . . . . .. . 65to +150
Operating Temperature Range
CMP401G, CMP402G . . . . . . . . . . . . .. .. 40 to +125
Junction Temperature Range
P, S, RU Package . . . . . . . . . . . . . . . . . .. .65 to +150
Lead Temperature Range (Soldering, 60 sec) . . . . .. .+300




Description

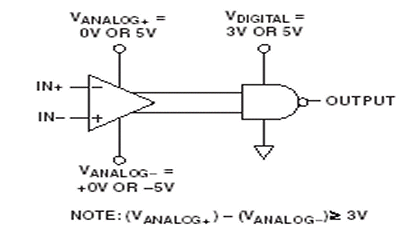

The CMP401 and CMP402 are 23 ns and 65 ns quad comparators with separate input and output supplies. Separate supplies enable the input stage to be operated from +3 volts to as high as ±6

The CMP401 and CMP402 are 23 ns and 65 ns quad comparators with separate input and output supplies. Separate supplies enable the input stage to be operated from +3 volts to as high as ±6 volts. The output can be supplied with either +3 volts or +5 volts as determined by the interface logic or available supplies. Independent input and output supplies combined with fast propagation make the CMP401 and CMP402 excellent choices for interfacing to portable instrumentation.
The CMP401 and CMP402 are specified over the extended industrial (40°C to +125°C) temperature range. Both are available in 16-pin plastic DIP or narrow SO-16 surface mount packages. Consult factory for 16-lead TSSOP availability.
