Product Details

Description



Pinout

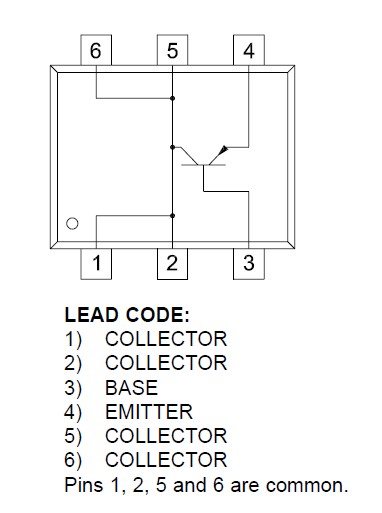

Connection Diagram


Specifications

  SYMBOL   UNITS
Collector-Base Voltage VCBO 80 V
Collector-Emitter Voltage VCEO 60 V
Emitter-Base Voltage VEBO 5.0 V
Collector Current IC 1.0 A
Base Current IB 200 mA
Collector Current (Peak) ICM 2.0 A
Power Dissipation PD 250 mW
Operating and Storage
Junction Temperature TJ,Tstg -65 to +150 °C
Thermal Resistance JA 357 °C/W



Description

The CENTRAL SEMICONDUCTOR CMLT591E type is a PNP Low VCE(Sat) 1.0 Amp transistor, epoxy molded in a space saving PICOmini™ SOT-563 surface mount package and designed for applications requiring a high current capability and low saturation voltages.
