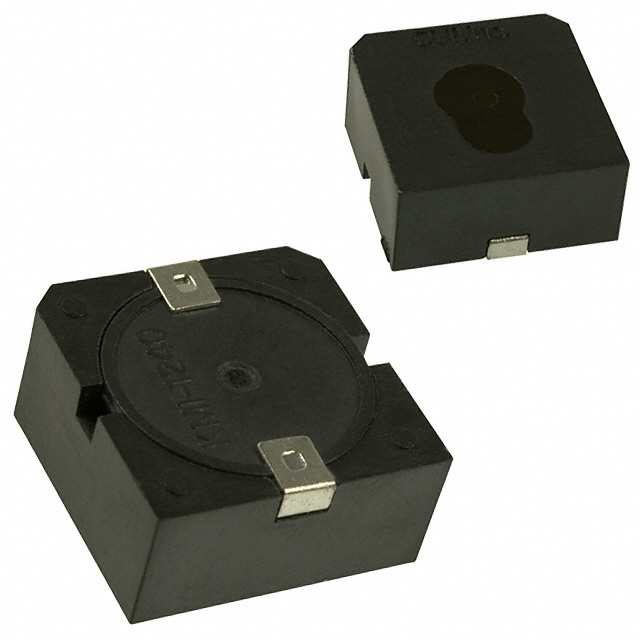

CMI-1240: BUZZER PIEZO 16.9MM 3-20VDC SMD

CMI-1240 Data Sheet

US $ 1.27~2.89 / Piece | Get Latest Price

Part Number:: CMI-1240
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$2.89
$2.39
$1.79
$1.49
$1.32
$1.27

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/10/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CMI-05-GSGYS evaluate
LED Circuit Board Indicators R/A PCB IND ASSY GRN/RED/GRN/YEL/RED

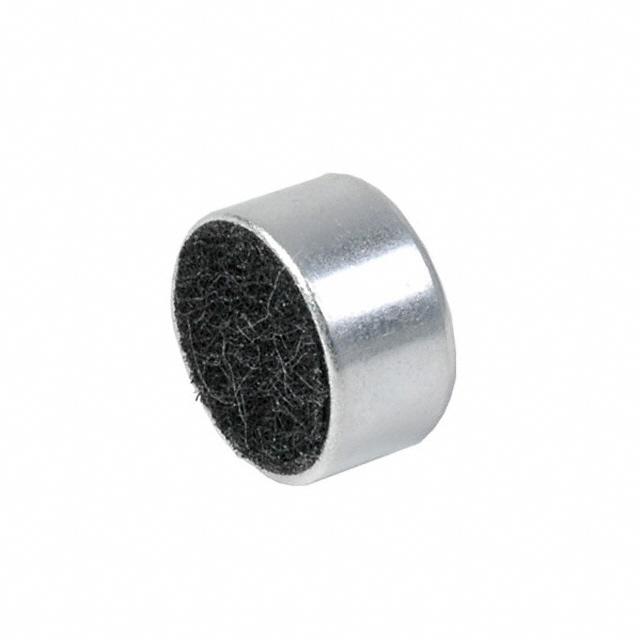

CMI-5247TF-K evaluate
US $.53 - 1.33 / Piece

MIC CONDENSER ELECT UNI -47DB

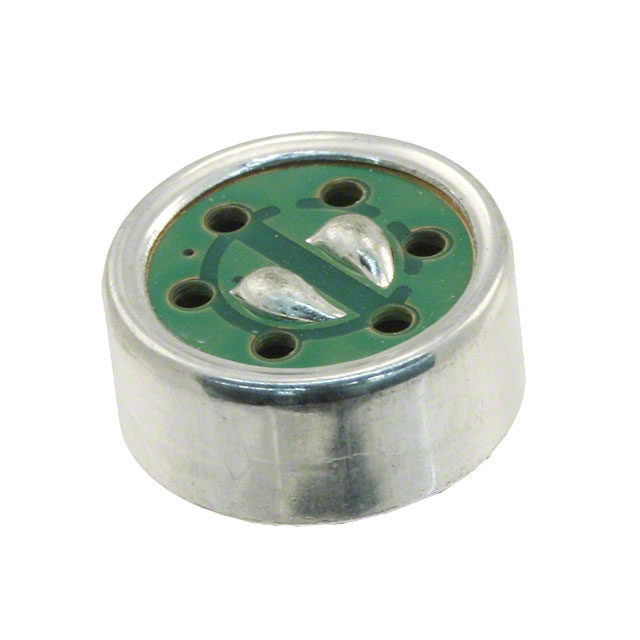

CMI-4537-SN69 evaluate
US $.95 - 2.16 / Piece

MIC CONDENSER ELECT UNI 1.5V DC

Product Details

Quick Details

Series:	-	Manufacturer:	CUI Inc
Driver Circuitry:	Indicator, Internally Driven	Technology:	Piezo
Input Type:	DC	Voltage - Rated:	12VDC
Voltage Range:	3 ~ 20V	Frequency:	4kHz
Operating Mode:	Continuous	Sound Pressure Level:	83dB @ 12V, 10cm
Dimensions :	17.7 mm x 46 mm x 5 mm	Current - Supply:	8mA
Washable:	No	Mounting Type:	Surface Mount
Termination:	Solder Pads	Size / Dimension:	Square - 16.90mm L x 16.90mm W x 8.30mm H

Description

Technology: Piezo
Frequency: 4kHz
Operating Mode: Continuous
Washable: No
Manufacturer: CUI Inc
Mounting Type: Surface Mount
Termination: Solder Pads
Series: -
Driver Circuitry: Indicator, Internally Driven
Input Type: DC
Voltage - Rated: 12VDC
Current - Supply: 8mA
Voltage Range: 3 ~ 20V
Sound Pressure Level: 83dB @ 12V, 10cm
Size / Dimension: Square - 16.90mm L x 16.90mm W x 8.30mm H
Packaging: Tube

Specifications

resonant frequency: 4.0kHz±0.5

operating voltage: 3-20 Vdc

current consumption: 8mA

sound pressure level: 83dB

rated voltage: 12 Vdc

operating temperature: -30 to +70°C

storage temperature: -40 to +80°C

dimensions (LxWxH): 16.9 mm x 16.9 mm x 7.8 mm

weight: 2.6 grams

Parameters:

Technical/Catalog Information	CMI-1240
Vendor	CUI Inc
Category	Audio Products
Type	Piezo Indicator, Internal Drive
Sound Pressure Level	83dB
Mounting Type	Surface Mount
Capacitance @ Frequency	-
Frequency	4kHz
Packaging	Tube
Operating Mode	Continuous
Voltage Range	3 ~ 20VDC
Voltage - Rated	12VDC
Current Rating	8mA
Size / Dimension	Square - 16.9mm L x 16.9mm W x 7.8mm H
Termination	Solder Pads
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CMI 1240 CMI1240 102 1196 5 ND 10211965ND 102-1196-5
