CMD95-21VYC/TR10

Standard LED - SMD YELLOW CLEAR Z-BEND

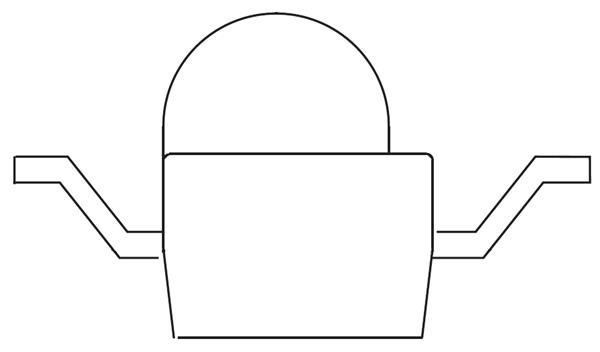

product image

CMD95-21VYC/TR10 Picture
See larger image
SeekIC No. : 0048987 Detail

CMD95-21VYC/TR10: Standard LED - SMD YELLOW CLEAR Z-BEND

CMD95-21VYC/TR10 Data Sheet

floor Price/Ceiling Price

US $ .1~.19 / Piece | Get Latest Price
Part Number:
CMD95-21VYC/TR10
Mfg:
Chicago Miniature
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~100
  • 100~500
  • 500~1000
  • Unit Price
  • $.19
  • $.14
  • $.13
  • $.1
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

LED Size : 2.1 mm x 2.2 mm Illumination Color : Yellow
Wavelength/Color Temperature : 585 nm Lens Color/Style : Clear
Forward Current : 20 mA Forward Voltage : 2 V
Luminous Intensity : 25 mcd Viewing Angle : 25 deg
Packaging : Reel

Description

Forward Current : 20 mA
Packaging : Reel
Illumination Color : Yellow
Forward Voltage : 2 V
Lens Color/Style : Clear
Viewing Angle : 25 deg
Luminous Intensity : 25 mcd
LED Size : 2.1 mm x 2.2 mm
Wavelength/Color Temperature : 585 nm


Pinout




Specifications

Part Number: CMD95-21VYC/TR10
Serial Number: CMD95
LED Type: SMT
Industry Size: Subminiature
Metric Size: 1.8 mm
Output Color: YELLOW
Epoxy: CLEAR
Peak Wave length (mA): 585
Minimum MCD: 16
Typical MCD: 25
Forward Volt (Typical): 2
Forward Volt (Max): 2.8
Rate Current (mA): 20
Viewing Angle (°): 25
Operating Temperature:
Storage Temperature:
Power Dissipation: 105
Cont Forward Current Max: 30
RoHS Status: Yes


Parameters:

Technical/Catalog InformationCMD95-21VYC/TR10
VendorCML Innovative Technologies Inc
CategoryOptoelectronics
ColorYellow
Lens Style/SizeRound, 1.7mm
Millicandela Rating25mcd
Voltage - Forward (Vf) Typ2.0V
Wavelength - Dominant585nm
Wavelength - Peak585nm
Current - Test20mA
Viewing Angle25°
Lens TypeClear
Luminous Flux4 mlm
Package / Case2.2mm x 2.1mm x 2.7mm
Mounting TypeSurface Mount, Bottom Entry
PackagingTape & Reel (TR)
Other Names CMD95 21VYC TR10
CMD9521VYCTR10
L63507TR ND
L63507TRND
L63507TR
