CMD67-21VYC/TR8

Standard LED - SMD YELLOW WATER CLEAR

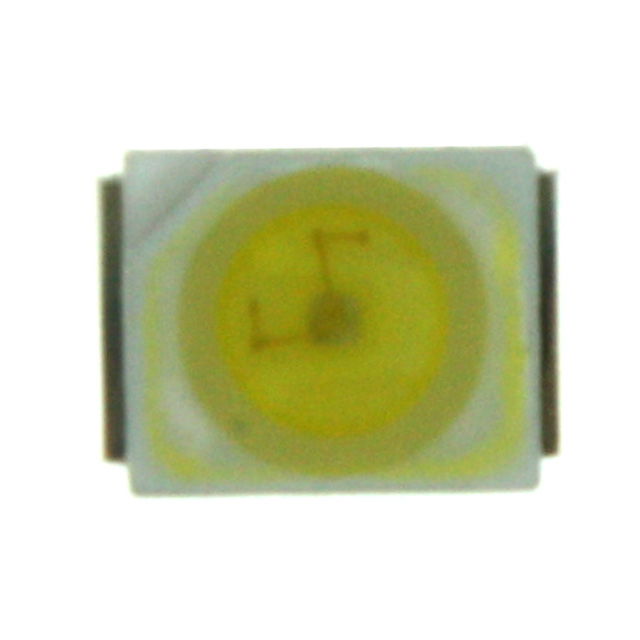

product image

CMD67-21VYC/TR8 Picture
SeekIC No. : 0048027 Detail

CMD67-21VYC/TR8: Standard LED - SMD YELLOW WATER CLEAR

floor Price/Ceiling Price

US $ .12~.25 / Piece | Get Latest Price
Part Number:
CMD67-21VYC/TR8
Mfg:
Chicago Miniature
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~100
  • 100~500
  • 500~1000
  • 1000~2000
  • Unit Price
  • $.25
  • $.19
  • $.16
  • $.14
  • $.12
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

LED Size : 3.2 mm x 2.8 mm x 1.9 mm Illumination Color : Yellow
Wavelength/Color Temperature : 585 nm Lens Color/Style : Water Clear
Forward Current : 20 mA Forward Voltage : 2 V
Luminous Intensity : 10 mcd Viewing Angle : 120 deg
Packaging : Reel

Description

Lens Color/Style : Water Clear
Forward Current : 20 mA
Packaging : Reel
Illumination Color : Yellow
Viewing Angle : 120 deg
Forward Voltage : 2 V
LED Size : 3.2 mm x 2.8 mm x 1.9 mm
Luminous Intensity : 10 mcd
Wavelength/Color Temperature : 585 nm


Pinout




Specifications

Part Number: CMD67-21VYC/TR8
Serial Number: CMD67
LED Type: SMT
Industry Size: Top LED
Metric Size: 3.2 x 2.8 x 1.9 mm
Output Color: YELLOW
Epoxy: CLEAR
Peak Wave length (mA): 585
Minimum MCD: 6
Typical MCD: 10
Forward Volt (Typical): 2
Forward Volt (Max): 2.8
Rate Current (mA): 20
Viewing Angle (°): 120
Operating Temperature:
Storage Temperature:
Power Dissipation: 105
Cont Forward Current Max: 30
RoHS Status: Yes


Parameters:

Technical/Catalog InformationCMD67-21VYC/TR8
VendorCML Innovative Technologies Inc
CategoryOptoelectronics
ColorYellow
Lens Style/SizeRound, 2.4mm
Millicandela Rating10mcd
Voltage - Forward (Vf) Typ2.0V
Wavelength - Dominant585nm
Wavelength - Peak585nm
Current - Test20mA
Viewing Angle120°
Lens TypeClear
Luminous Flux330 mlm
Package / CasePLCC-2
Mounting TypeSurface Mount
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names CMD67 21VYC TR8
CMD6721VYCTR8
L62807TR ND
L62807TRND
L62807TR
