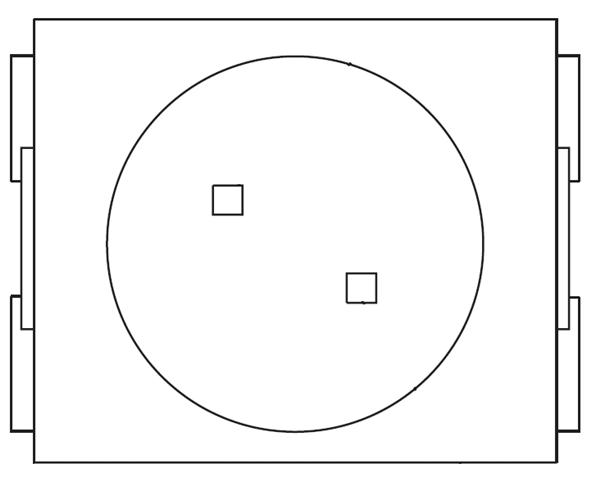

See larger image

SeekIC No. : 0048166 Detail

CMD67-21SRC/TR8: Standard LED - SMD RED WATER CLEAR

CMD67-21SRC/TR8 Data Sheet

US $ .16~.32 / Piece | Get Latest Price

Part Number:: CMD67-21SRC/TR8
Mfg:: Chicago Miniature
Supply Ability:: 5000

Price Break

Qty
0~1
1~100
100~500
500~1000
1000~2000

Unit Price
$.32
$.23
$.2
$.18
$.16

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CMD60110 evaluate
US $129.54 - 156.27 / Piece

Solid State Relays PM IP20 660Vac/110 A, 3-32Vdc,ZC
CMD60125 evaluate
US $133.19 - 160.69 / Piece

Solid State Relays PM IP20 660Vac/125 A, 3-32Vdc,ZC
CMD6025 evaluate
US $67.94 - 81.97 / Piece

Solid State Relays PM IP20 660Vac/25A , 3-32Vdc,ZC

Product Details

Quick Details

LED Size :	3.2 mm x 2.8 mm x 1.9 mm	Illumination Color :	Red
Wavelength/Color Temperature :	660 nm	Lens Color/Style :	Water Clear
Forward Current :	20 mA	Forward Voltage :	1.7 V
Luminous Intensity :	40 mcd	Viewing Angle :	120 deg
Packaging :	Reel

Description

Lens Color/Style : Water Clear
Forward Current : 20 mA
Packaging : Reel
Viewing Angle : 120 deg
Illumination Color : Red
LED Size : 3.2 mm x 2.8 mm x 1.9 mm
Luminous Intensity : 40 mcd
Wavelength/Color Temperature : 660 nm
Forward Voltage : 1.7 V

Pinout

Specifications

Part Number: CMD67-21SRC/TR8
Serial Number: CMD67
LED Type: SMT
Industry Size: Top LED
Metric Size: 3.2 x 2.8 x 1.9 mm
Output Color: RED
Epoxy: CLEAR
Peak Wave length (mA): 660
Minimum MCD: 25
Typical MCD: 40
Forward Volt (Typical): 1.7
Forward Volt (Max): 2.4
Rate Current (mA): 20
Viewing Angle (°): 120
Operating Temperature: -40 to +85
Storage Temperature: -40 to +85
Power Dissipation: 100
Cont Forward Current Max: 30
RoHS Status: Yes

Parameters:

Technical/Catalog Information	CMD67-21SRC/TR8
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Red
Lens Style/Size	Round, 2.4mm
Millicandela Rating	40mcd
Voltage - Forward (Vf) Typ	1.7V
Wavelength - Dominant	660nm
Wavelength - Peak	660nm
Current - Test	20mA
Viewing Angle	120°
Lens Type	Clear
Luminous Flux	314 mlm
Package / Case	PLCC-2
Mounting Type	Surface Mount
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CMD67 21SRC TR8 CMD6721SRCTR8 L62811DKR ND L62811DKRND L62811DKR
