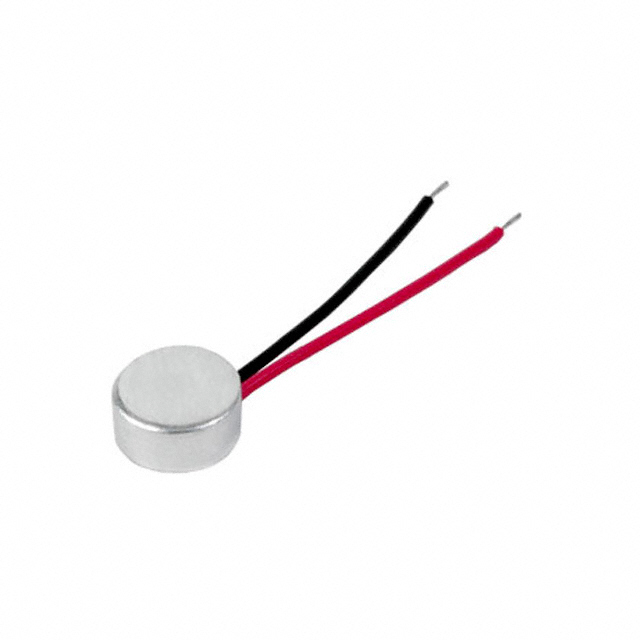

CMC-2742WBL-25L

Series: -
Manufacturer: CUI Inc
Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
Impedance: 2.2 kOhm
Current - Supply: 500µA
Port Location: Top
Shape: Circular
Packaging: Bulk
Frequency Range: 100Hz ~ 20kHz
Sensitivity: -42dB ±3dB
Voltage - Rated: 2 ~ 10V
Size / Dimension: 6.00mm Dia
S/N Ratio: 57dB
Seal Rating: Waterproof
Termination: Wire Leads
Height (Max): 4.10mm


Specifications

directivity: omnidirectional

sensitivity: -42 dB ± 3 dB

sensitivity reduction: -3 dB

operating voltage: 2.0 Vdc

output impedance: 2.2 KΩ

operating frequency: 100 ~ 20,000 Hz

current consumption: 0.5 mA

signal to noise ratio: 57 dBA

operating temperature: -20 ~ +70° C

storage temperature: -20 ~ +70° C

dimensions: ?6.0 x 2.7 mm

weight: 0.22 g

material: Al

termination: wire type

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	CMC-2742WBL-25L
Vendor	CUI Inc
Category	Audio Products
Sensitivity	-42dB ±3dB
Voltage - Rated	2 ~ 10V
Current	500A
Type	Electret Condenser
Size / Dimension	Circular - 6mm Dia x 2.7mm H
Frequency	100Hz ~ 20kHz
S/N Ratio	57dB
Filter Type	-
Impedance	2.2K Ohm
Termination	Wire Leads
Direction	Omnidirectional
Port Location	Top
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CMC 2742WBL 25L CMC2742WBL25L 102 1732 ND 1021732ND 102-1732
