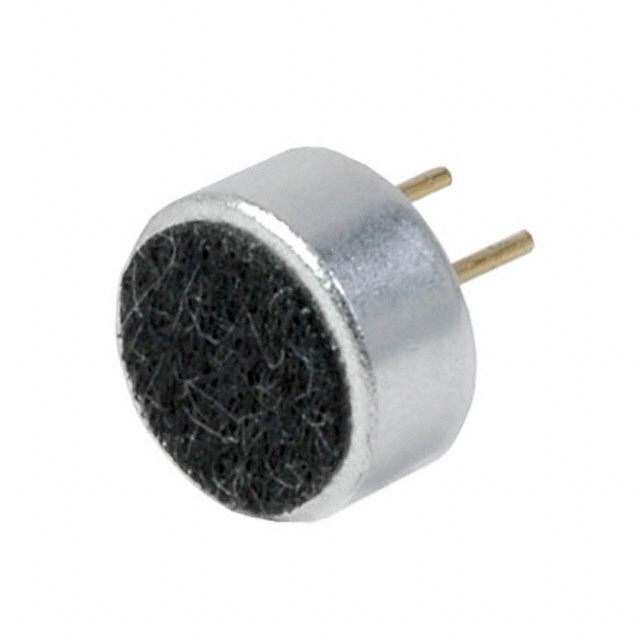

CMC-2742PBJ-A

Series: -
Manufacturer: CUI Inc
Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
Impedance: 2.2 kOhm
Port Location: Top
Seal Rating: None
Termination: Solder Pins/Posts
Shape: Circular
Packaging: Bulk
Frequency Range: 100Hz ~ 20kHz
S/N Ratio: 58dB
Sensitivity: -42dB ±3dB
Voltage - Rated: 2 ~ 10V
Size / Dimension: 6.00mm Dia
Height (Max): 2.90mm
Current - Supply: 400µA


Specifications

directivity: omnidirectional

sensitivity: -42 dB ± 3 dB

sensitivity reduction: -3 dB

operating voltage: 2.0 Vdc

output impedance: 2.2 KΩ

operating frequency: 20 ~ 20,000 Hz

current consumption: 0.4 mA

signal to noise ratio: 58 dBA

operating temperature: -20 ~ +70° C

storage temperature: -20 ~ +70° C

dimensions: ?6.0 x 2.7 mm

weight: 0.17 g

material: Al

termination: pin type

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	CMC-2742PBJ-A
Vendor	CUI Inc
Category	Audio Products
Sensitivity	-42dB ±3dB
Voltage - Rated	2 ~ 10V
Current	400A
Type	Electret Condenser
Size / Dimension	Circular - 6mm Dia x 2.7mm H
Frequency	20Hz ~ 20kHz
S/N Ratio	58dB
Filter Type	-
Impedance	2.2K Ohm
Termination	Solder Pins/Posts
Direction	Omnidirectional
Port Location	Top
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CMC 2742PBJ A CMC2742PBJA 102 1726 ND 1021726ND 102-1726
