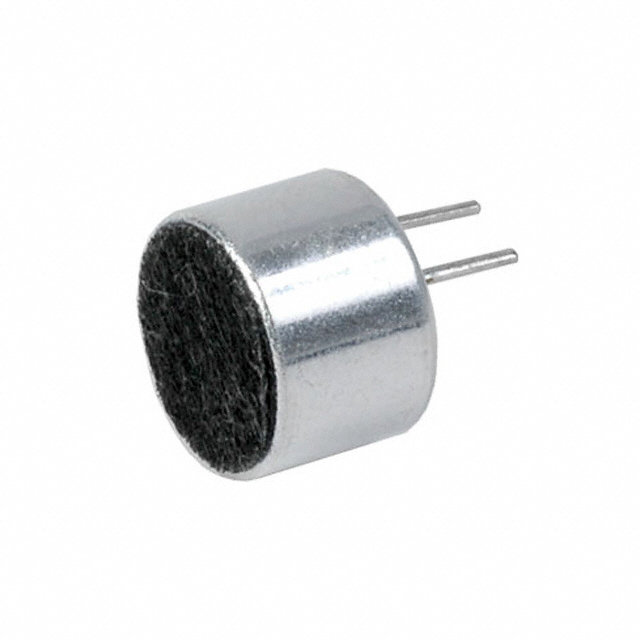

CMB-6544PF

Series: -
Manufacturer: CUI Inc
Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
Frequency Range: 20Hz ~ 20kHz
S/N Ratio: 60dB
Current - Supply: 500µA
Port Location: Top
Seal Rating: None
Termination: Solder Pins/Posts
Shape: Circular
Packaging: Bulk
Height (Max): 6.70mm
Sensitivity: -44dB ±3dB
Impedance: 1 kOhm
Voltage - Rated: 4.5 ~ 10V
Size / Dimension: 9.40mm Dia


Specifications

directivity: omnidirectional

sensitivity: -44 dB ± 3 dB

sensitivity reduction: -3 dB

operating voltage: 4.5 Vdc

output impedance: 1.0 KΩ

operating frequency: 20 ~ 20,000 Hz

current consumption: 0.5 mA

signal to noise ratio: 60 dBA

operating temperature: -20 ~ +70° C

storage temperature: -20 ~ +70° C

dimensions: ?9.4 x 6.5 mm

weight: 0.70 g

material: Al

termination: pin type

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	CMB-6544PF
Vendor	CUI Inc
Category	Audio Products
Sensitivity	-44dB ±3dB
Voltage - Rated	4.5 ~ 10V
Current	500A
Type	Electret Condenser
Size / Dimension	Circular - 9.4mm Dia x 6.5mm H
Frequency	20Hz ~ 20kHz
S/N Ratio	60dB
Filter Type	-
Impedance	1K Ohm
Termination	Solder Pins/Posts
Direction	Omnidirectional
Port Location	Top
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CMB 6544PF CMB6544PF 102 1722 ND 1021722ND 102-1722
