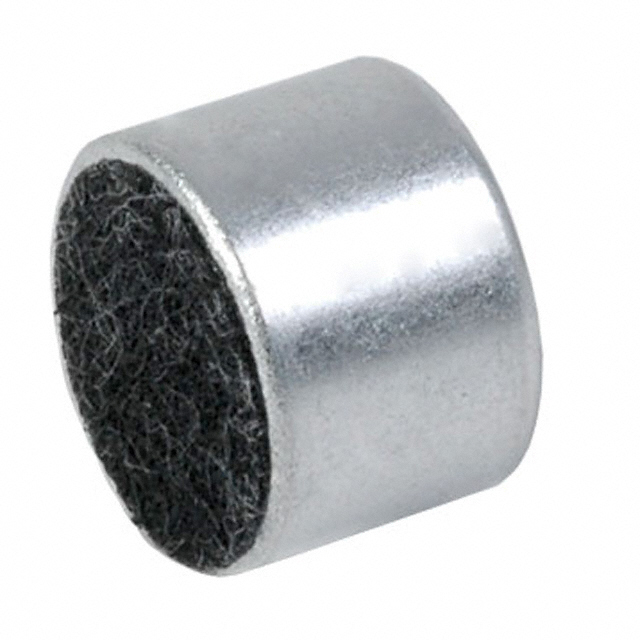

CMA-6542TF-K

Series: -
Manufacturer: CUI Inc
Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
Current - Supply: 500µA
Port Location: Top
Seal Rating: None
Size / Dimension: 9.70mm Dia
Shape: Circular
Packaging: Bulk
Frequency Range: 100Hz ~ 20kHz
Sensitivity: -42dB ±2dB
S/N Ratio: 58dB
Impedance: 1.5 kOhm
Voltage - Rated: 1.5 ~ 10V
Termination: Solder Pads
Height (Max): 6.70mm


Specifications

directivity: omnidirectional

sensitivity: -42 dB ± 2 dB

sensitivity reduction: -3 dB

operating voltage: 1.5 Vdc

output impedance: 1.5 KΩ

operating frequency: 100 ~ 20,000 Hz

current consumption: 0.5 mA

signal to noise ratio: 58 dBA

operating temperature: -20 ~ +70° C

storage temperature: -20 ~ +70° C

dimensions: ?9.7 x 6.5 mm

weight: 0.85 g

material: Al

termination: terminal type

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	CMA-6542TF-K
Vendor	CUI Inc
Category	Audio Products
Sensitivity	-42dB ±2dB
Voltage - Rated	1.5 ~ 10V
Current	500A
Type	Electret Condenser
Size / Dimension	Circular - 9.7mm Dia x 6.5mm H
Frequency	100Hz ~ 20kHz
S/N Ratio	58dB
Filter Type	-
Impedance	1.5K Ohm
Termination	Solder Pads
Direction	Omnidirectional
Port Location	Top
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CMA 6542TF K CMA6542TFK 102 1719 ND 1021719ND 102-1719
