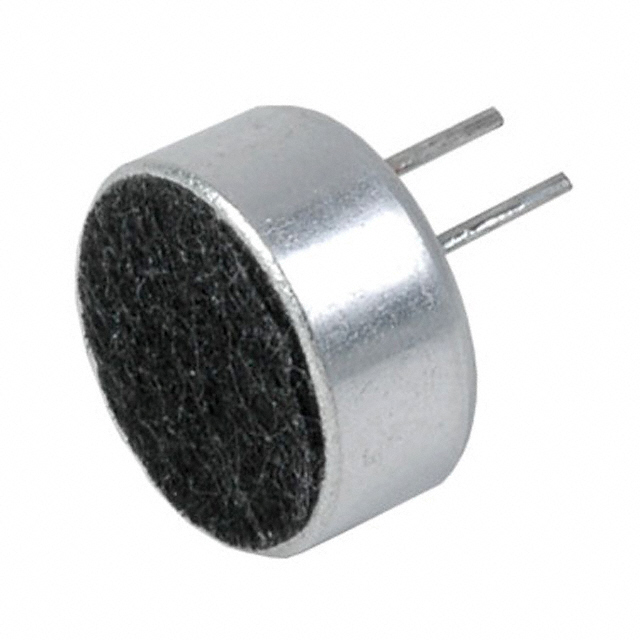

CMA-4544PF-W

Series: -
Manufacturer: CUI Inc
Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
Frequency Range: 20Hz ~ 20kHz
Sensitivity: -44dB ±2dB
S/N Ratio: 60dB
Impedance: 2.2 kOhm
Voltage - Rated: 3 ~ 10V
Current - Supply: 500µA
Port Location: Top
Seal Rating: None
Termination: Solder Pins/Posts
Size / Dimension: 9.70mm Dia
Height (Max): 4.70mm
Shape: Circular
Packaging: Bulk


Specifications

directivity: omnidirectional

sensitivity: -44 dB ± 2 dB

sensitivity reduction: -3 dB

operating voltage: 3.0 Vdc

output impedance: 2.2 KΩ

operating frequency: 20 ~ 20,000 Hz

current consumption: 0.5 mA

signal to noise ratio: 60 dBA

operating temperature: -20 ~ +70° C

storage temperature: -20 ~ +70° C

dimensions: ?9.7 x 4.5 mm

weight: 0.80 g

material: Al

termination: pin type

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	CMA-4544PF-W
Vendor	CUI Inc
Category	Audio Products
Sensitivity	-44dB ±2dB
Voltage - Rated	3 ~ 10V
Current	500A
Type	Electret Condenser
Size / Dimension	Circular - 9.7mm Dia x 4.5mm H
Frequency	20Hz ~ 20kHz
S/N Ratio	60dB
Filter Type	-
Impedance	2.2K Ohm
Termination	Solder Pins/Posts
Direction	Omnidirectional
Port Location	Top
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CMA 4544PF W CMA4544PFW 102 1721 ND 1021721ND 102-1721
