Product Details

Description



Features:

· No output coupling capacitors, bootstrap capacitors or snubber circuits are necessary.
· Small outline or DIP packaging.
· Unity-gain stable
· External gain configuration capability


Application

· Portable Computers
· Cellular Phones
· Toys and Games

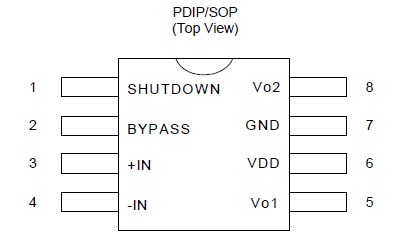

Pinout

Connection Diagram


Specifications

Supply Voltage (VIN) ................  . +6.0V
Storage Temperature (TS) .......... -65 to +150
Input Voltage (VIN) .......... -0.3V to VDD + 0.3V
Power Dissipation (Note 3) ........  Internally Limited
ESD Susceptibility (Note 4) .............  . 3500V
ESD Susceptibility (Note 5) ............   ... 250V
Junction Temperature ...............     150
Soldering Information
Small Outline Package
Vapor Phase (60 sec) ..................  215
Infrared (15 sec) .................. . 220
Thermal Resistance
Jc (typ) - M08A ................... 35/W
JA (typ) - M08A ................ . 170/W
Jc (typ) - N08E .................   37/W
JA (typ) - N08E ................. 107/W


Description

The CM8662 is a bridge-connected audio power amplifier capable of delivering typically 675mW of continuous average power to an 8 load with 1% (THD) from a 5V power supply. Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components. Since the CM8662 does not require output coupling capacitors, bootstrap capacitors, or snuuber networks, it is optimally suited for low-power portable systems.

The CM8662 features an externally controlled, low-power consumption shutdown mode, as well as an internal thermal shutdown protection mechanism.

The unity-gain stable CM8662 can be configured by external gain-setting resistors.
