CM2400-01HB

Features: • Complies with USB Specification Rev 1.1 & 2.0.• Supports Full (12Mbit/s) speed.• Integrated 5V to 3.3V regulator.• Used as a USB device transceiver.• VBUS disconnection indication through VP, VM.• Two single-ended receivers with hysteresis.•...

product image

CM2400-01HB Picture
See larger image
SeekIC No. : 004314349 Detail

CM2400-01HB: Features: • Complies with USB Specification Rev 1.1 & 2.0.• Supports Full (12Mbit/s) speed.• Integrated 5V to 3.3V regulator.• Used as a USB device transceiver.• VB...

CM2400-01HB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CM2400-01HB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Complies with USB Specification Rev 1.1 & 2.0.
• Supports Full (12Mbit/s) speed.
• Integrated 5V to 3.3V regulator.
• Used as a USB device transceiver.
• VBUS disconnection indication through VP, VM.
• Two single-ended receivers with hysteresis.
• USB Detection of VBUS via level translator.
• Stable RCV output during SE0 condition.
• Low power operation.
• Supports 1.65 to 3.3V I/O voltage levels.
• Full industrial operating range 40 to 85 °C.
• Available in small HBCC16 Package.


Application

• Mobile Phones.
• Digital still cameras.
• PDA (Personal Digital Assistant).
• IA (Information Appliance).


Pinout

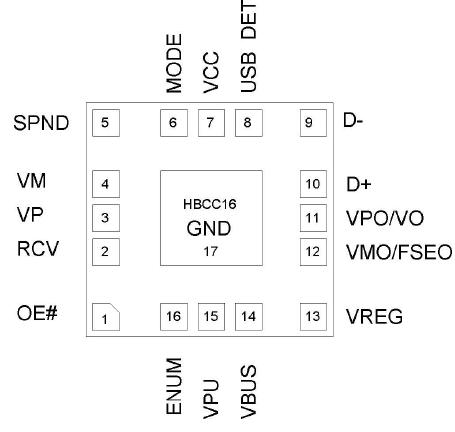

Connection Diagram


Specifications

Parameter Rating Unit
ESD Protection (HBM) (All pins) [1] 2000 V
VBUS -0.5 to +5.5 V
VCC -0.5 to +6.0 V
VI(Input) -0.5 to VCC + 0.5 V
Temperature: Storage
Operating Junction		 -40 to +150
-40 to +150		 °C



Description

The CM240001HB Universal Serial Bus (USB) transceiver is fully compliant with the USB specification Rev 1.1 and 2.0. It supports a speed of 12Mbits/s (Full Speed).

An internal level shifter CM2400-01HB allows interface to Application specific IC's (ASIC's) and Programmable logic devices (PLD's) running at core voltages of 1.65 to 3.3V.

An internal 5-3.3V regulator CM2400-01HB is used to power the CM240001HB USB transceiver via the USB supply VBUS.

Single and differential input modes CM2400-01HB are selectable by a mode input pin.

CM2400-01HB is ideal for portable electronic devices such as mobile phones, digital still cameras, PDA (Personal Digital Assistants) and IR (Information Appliances).
