Features:

· Low dropout performance
·1.3V max. for CM1084
·Full current rating over line and temperature
·Fast transient response
·±2% total output regulation over line, load and temperature
· Adjust pin current max 90|ìA over temperature
· Adjustable output voltage
·Line regulation typically 0.015%
·Load regulation typically 0.1%
·TO-220, TO-252 and TO-263 packages



Application

·Power Supplies
·Computer Add-On Cards
·Other Applications Requiring Low Dropout Voltage Over Rated Current




Pinout

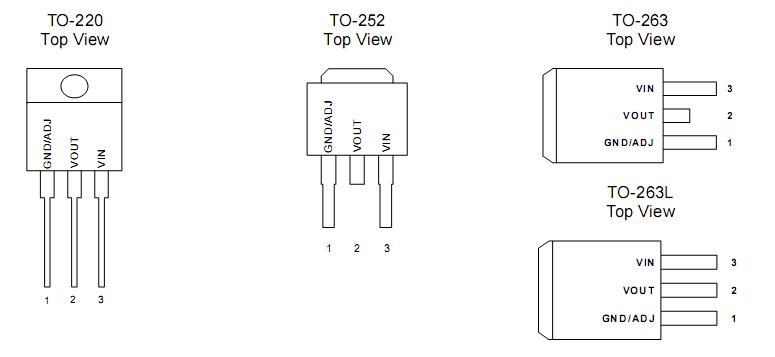

  Connection Diagram


Specifications

Parameter
Symbol
Maximum
Units
Input Supply Voltage
VIN
7
V
Power Dissipation
PD
Internally
Limited.
W
Thermal Resistance Junction to Case
TO-220
TO-263
TO-252
JC
2.5
2.5
2.5
/W
Thermal Resistance Junction to Ambient
TO-220
TO-263/TO-263L
TO-252
JC
45
45
80
/W
Operating Junction Temperature Range
TJ
0 to 125
Storage Temperature Range
TSTG
-65 to 150
Lead Temperature(Soldering)10 Sec
TLEAD
260



Description

The CM1084 series of high performance positive voltage regulators are designed for use in applications requiring low dropout performance at full rated current. Additionally, the CM1084 series provides excellent regulation over variations in line, load and temperature.

Outstanding features include low dropout performance at rated current, fast transient response, internal current limiting and thermal shutdown protection of the output device. The CM1084 series are three terminal regulators with adjustable voltage options available in popular  packages.
