CLS0501MP

SPEAKER 8OHMS .2W 50MM PC MNT

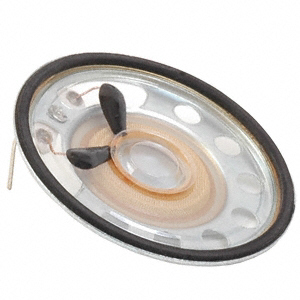

product image

CLS0501MP Picture
See larger image
SeekIC No. : 002845890 Detail

CLS0501MP: SPEAKER 8OHMS .2W 50MM PC MNT

CLS0501MP Data Sheet

floor Price/Ceiling Price

US $ 1.64~1.64 / Piece | Get Latest Price
Part Number:
CLS0501MP
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1200
  • Unit Price
  • $1.64
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CLS, CLF Manufacturer: CUI Inc
Type: Magnetic Frequency Range: 550Hz ~ 6kHz
Impedance: 8 Ohm Sound Pressure Level: 80dB
Power - Rated: 0.2W Power - Max: 0.5W
Height: 9.30mm Dimensions : 14 mm x 20 mm x 3.4 mm
Size / Dimension: 50.00mm Dia Shape: Round
Termination: PC Pins Material - Cone: -

Description

Manufacturer: CUI Inc
Type: Magnetic
Impedance: 8 Ohm
Sound Pressure Level: 80dB
Power - Rated: 0.2W
Shape: Round
Power - Max: 0.5W
Material - Magnet: -
Termination: PC Pins
Series: CLS, CLF
Material - Cone: -
Size / Dimension: 50.00mm Dia
Height: 9.30mm
Frequency Range: 550Hz ~ 6kHz


Specifications

  • diameter: 50 mm
  • depth: 9.0 mm
  • impedance: 8Ω
  • s.p. level: 80 dB
  • resonance frequency: 550 Hz
  • frequency range: fo-13K
  • nominal input: 0.2W
  • handling capacity (max input): 0.5W
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationCLS0501MP
    VendorCUI Inc
    CategoryAudio Products
    Frequency Range20Hz ~ 6kHz
    Impedance8 Ohm
    TypeMagnetic
    Size / Dimension50mm Dia x 9.0mm H
    Sound Pressure Level80dB
    Power - Rated0.2W
    Power - Max0.5W
    TerminationSolder Pins/Posts
    Material - Cone-
    Material - Magnet-
    ShapeRound
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CLS0501MP
    CLS0501MP
    102 1548 ND
    1021548ND
    102-1548
