Product Details

Description



Features:

Operating Current. . . . . . . . . . . . . . . . . . .   20A - 20mA
Dynamic Impedance . . . . . . . . . . . . . . . . . . . . . . . . . .  1
Low Voltage Reference. . . . . . . . . . . . . . . . . . . . . . .  2.5V

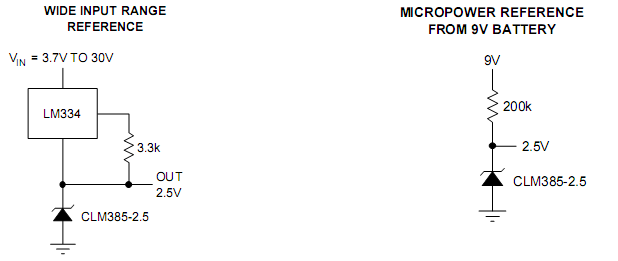

Application

Connection Diagram

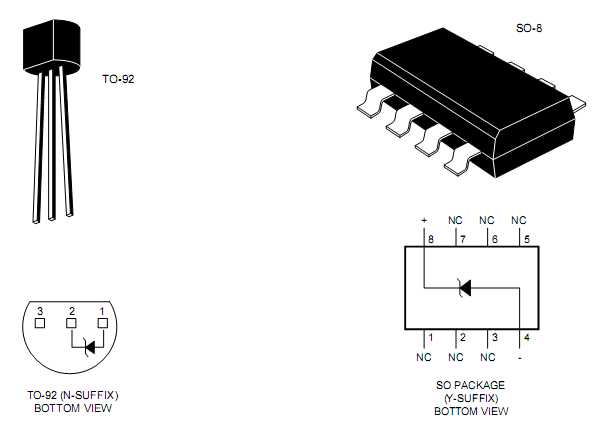

Pinout

Connection Diagram


Specifications

Reverse Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . .30mA
Forward Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . .10mA
Operating Temperature Range (Note 3)
CLM185-2.5. . . . . . . . . . . . . . . . . . . . . . .   -55to +125
CLM285-2.5. . . . . . . . . . . . . . . . . . . . . . . .  -40 to +85
CLM385-2.5. . . . . . . . . . . . . . . . . . . . . . . . . . 0 to +70
Storage Temperature. . . . . . . . . . . . . . . . .-55 to +150
Soldering Information
TO-92 Package (10 sec.). . . . . . . . . . . . . . . . . . . . .  260
TO-46 Package (10 sec.). . . . . . . . . . . . . . . . . . . . .  300
SO Package: Vapor Phase (60 sec.). . . . . . . . .  . . . . 215
Infrared (15 sec.). . . . . . . . . . . . . .  . . . . . .  . . . . . . 220


Description

The CLM285 / 385 - 2.5 are 2 terminal band-gap voltage regulator diodes.  Operating over a 20?A to 20mA current range. The devices provide good temperature stability and exceptionally low dynamic impedance.  Designed for applications in portable meters, regulators or general purpose circuitry.
