CLM2805

Features:

Smallest Possible Size (SOT-23-5)
5V, 4.8V, 4.5V, 4V, 3.5V, 3.3V, 3V, 2.5V Fixed Output
Guaranteed Output Current in Excess of 120mA
Available in Adjustable Output With ON/OFF Switch
Internal Thermal Overload Protection
Voltage Dropout is Less Than 100Mv at 50mA Output
Reverse Battery Protection
Short Circuit Protection
Low Cost Solution


Application

Cellular Phone
Palmtop/Laptop Computer
Personal Digital Assistance (PDA)
Radio Control Systems
Camcorder, Camera
Portable Instrumentation
Radio Control Systems
Cordless Telephones

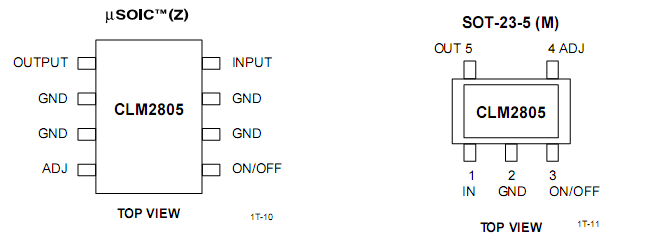

Pinout




Specifications

Operating Junction Temperature Range. . . . . -40 to +85
Power Dissipation. . . . . . . . . . . . . . . . . . . . . Internally Limited
Input Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . -3V to +26V
Lead Temp. (soldering, 5 seconds). . . . . . . . . . . . . . . . 260
Storage Temperature Range. . . . . . . . . . . . . -65to +150
ESD Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2KV


Description

The CLM2805 is a low power voltage regulator.  This product is designed for battery-powered applications such as cordless telephones, radio control systems and portable computers. The CLM2805 features very low quiescent current (0.4mA) and very low dropout put voltage (typ. 50mV at a light load of 300mV at 100mA).  Other features include the logic-compatible on/off input which enables the regulator to be switched on and off.  The CLM2805 is offered in an ultra small package, 5-pin SOT-23 as a fixed, adjustable with ON/OFF Switch.
CLM2805 regulator output voltage may be internally pin-strapped for a 5V, 4.8V, 4.5V, 4V, 3.5V, 3.3V, 3V, 2.5V or programmed from 3V to 24V with an external pair of resistors.  For other fix voltages consult the factory.
