Features: Wide Dynamic Range
82dB SFDR; Fin = 400kHz
81dB IMD; Fin = 3.5MHz & 3.7MHz
82dB SNR; Fin = 7MHz
Fast recovery time
0.6 LSB differential linearity error
Application Electronic imaging
Digital communications
IF sampling
Radar processing
FLIR processing

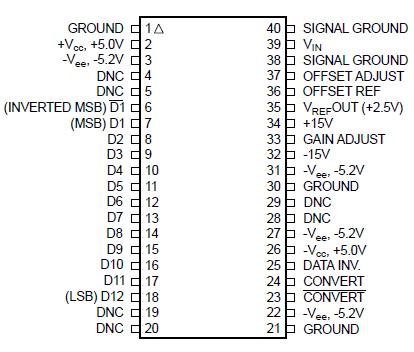

InstrumentationPinout
Specificationspositive supply voltage (+VCC) .....................................-0.5 to +7.0V
positive supply voltage (+V1)........................................ -0.5 to +18V
negative supply voltage (-VEE)..................................... +0.5 to -7.0V
negative supply voltage (-V1) ....................................+0.5 to -18.0V
differential voltage between any two GND's.......................... 200mV
analog input voltage range.......................................... -VEE to +VCC
digital input voltage range ..........................................+0.5V to -VEE
gain adjust voltage range ...........................................-VEE to +VCC
output short circuit duration (one pin to ground) ..................Infinite
junction temperature ...........................................................+175°C
operating temperature range
CLC935-BC............................................................. 0°C to +70°C
CLC935-B8C...................................................... -55°C to +125°C
storage temperature range................................... -65°C to +150°C
lead solder duration (+300°C)............................................... 10 sec
DescriptionThe Comlinear CLC935 is a high-speed high-performance 12-bit Analog-to-Digital converter. the CLC935 is a complete A/D subsystem, including 12-bit quantizer, track-and-hold, and references. The ECL compatible A/D has maximum sample rates of 15MSPS, allowing the user to digitize high-speed signals accurately.
The CLC935 has excellent dynamic performance characteristics which are thoroughly tested to insure that system performance goals will be met. Sampling at 15MSPS with a 400kHz input signal, the CLC935 achieves a typical 82dBc SFDR and an SNR of 65.5dB. Sampling a 5MHz signal can be done with 78dB of SFDR.
The CLC935 incorporates a complete two-pass architecture which is constructed from high-speed IC's on a thin-film substrate. Critical DC parameters are laser trimmed to assure accurate part-to-part matching. A CONVERT clock, power, and an analog input signal are all that are required for CLC935 operation.
The CLC935-BC part is specified over the commercial temperature range, while the CLC935-B8C part is an extended temperature range, high reliability version. Both parts are packaged in 40- pin, 1.1 inch wide, ceramic DIPs with side-brazed leads for easy access and inspection
CLC935 Data Sheet
