CLC446

Features:

·400MHz bandwidth (Av = +2)
·5mA supply current
·0.02%, 0.03° differential gain, phase
·2000V/ms slew rate
·9ns settling to 0.1%
·0.05dB gain flatness to 100MHz
·-65/-78dBc HD2/HD3


Application

·High resolution video
·A/D driver
·Medical imaging
·Video switchers & routers
·RF/IF amplifier
·Communications
·Instrumentation

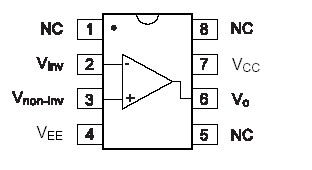

Pinout




Specifications

supply voltage                                                         ±6V
output current                                                     ±48mA
common-mode input voltage                                   ±Vcc
maximum junction temperature                            +175
storage temperature range                    -65 to +150
lead temperature (soldering 10 sec)                    +300
ESD rating (human body model)                            1000V


Description

The National CLC446 is a very high-speed unity-gain-stable current- feedback op amp that is designed to deliver the highest levels of performance from a mere 50mW quiescent power. It provides a very wide 400MHz bandwidth, a 2000V/ms slew rate and 900ps rise/fall times. The CLC446 achieves its superior speedvs- power using an advanced complementary bipolar IC process and National's current-feedback architecture.

The CLC446 is designed to drive video loads with very low differential gain and phase errors (0.02%, 0.03°). Combined with its very low power (50mW), the CLC446 makes an excellent choice for NTSC/PAL video switchers and routers. With its very quick edge rates (900ps) and high slew rate (2000V/ms), the CLC446 also makes an excellent choice for high-speed, highresolution component RGB video systems.
The CLC446 makes an excellent low-power high-resolution A/D converter driver with its very fast 9ns settling time (to 0.1%) and low harmonic distortion.

The combination of high performance and low power make the CLC446 useful in many high-speed general purpose applications. Its current-feedback architecture maintains consistent performance over a wide gain range and signal levels. DC gain and bandwidth can be set independently. Also, either maximally flat AC response or linear phase response can be emphasized.
