Features: `1.9GHz gain-bandwidth product
`1.05nV/Hz input voltage noise
`0.8pA/Hz @ Icc < 5mA
`100mV input offset voltage, 2mV/°C drift
`350V/ms slew rate
`15mA to 5mA adjustable supply current
`Gain range ±10 to ±1,000V/V
`Evaluation boards & simulation macromodel
`0.9dB NF @ Rs = 700Application·Instrumentation sense amplifiers
·Ultrasound pre-amps
·Magnetic tape & disk pre-amps
·Photo-diode transimpedance amplifiers
·Wide band active filters
·Low noise figure RF amplifiers
·Professional audio systems

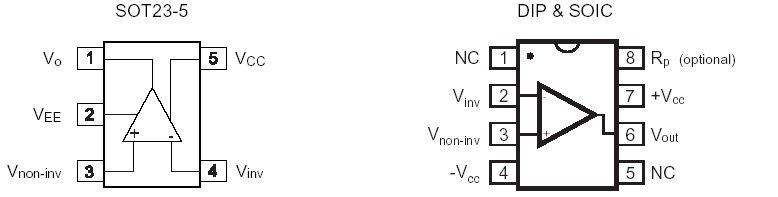

·Low-noise loop filters for PLLsPinout
SpecificationsVcc ±7V
Iout short circuit protected to ground, however maximum reliabiliy
is obtained if Iout does not exceed... 125mA
common-mode input voltage ±Vcc
maximum junction temperature +150
operating temperature range:
AJ -40 to +85
storage temperature range -65 to +150
lead temperature (soldering 10 sec) +300
ESD (human body model) 1000V DescriptionThe CLC425 combines a wide bandwidth (1.9GHz GBW) with very low input noise (1.05nV/ÖHz, 1.6pA/ÖHz) and low dc errors (100mV VOS, 2mV/°C drift) to provide a very precise, wide dynamic-range op amp offering closed-loop gains of 10.
Singularly suited for very wideband high-gain operation, the CLC425 employs a traditional voltage-feedback topology providing all the benefits of balanced inputs, such as low offsets and drifts, as well as a 96dB open-loop gain, a 100dB CMRR and a 95dB PSRR.
The CLC425 also offers great flexibility with its externally adjustable supply current, allowing designers to easily choose the optimum set of power, bandwidth, noise and distortion performance.Operating from ±5V power supplies, the CLC425 defaults to a 15mA quiescent current, or by adding one external resistor, the supply current can be adjusted to less than 5mA.
The CLC425's combination of ultra-low noise, wide gain-bandwidth, high slew rate and low dc errors will enable applications in areas such as medical diagnostic ultrasound, magnetic tape & disk storage, communications and opto-electronics to achieve maximum high-frequency signal-to-noise ratios.
The CLC425 is available in the following versions:
CLC425AJP -40 to +85 8-pin PDIP
CLC425AJE -40 to +85 8-pin SOIC
CLC425A8B -55 to +125 8-pin CERDIP,
MIL-STD-883, Level B
CLC425ALC -40 to +85 dice
CLC425AMC -55 to +125 dice, MIL-STD-883, Level B
CLC425AJM5 -40 to +85 5-pin SOT
DESC SMD number : 5962-93259.
