CLC412

Features:

 Wide bandwidth: 330MHz (A_v=+1V/V)
                               250MHz (A_v=+2V/V)
 0.1dB gain flatness to 30MHz
Low power: 5mA/channel
 Very low diff. gain, phase: 0.02%, 0.02°
 -76dB channel-to-channel crosstalk (10MHz)
 Fast slew rate: 1300V/ms
 Unity-gain stable

Application

 HDTV, NTSC & PAL video systems
Video switching and distribution
 IQ amplifiers
 Wideband active filters
 Cable drivers
 DC coupled single-to-differential conversions

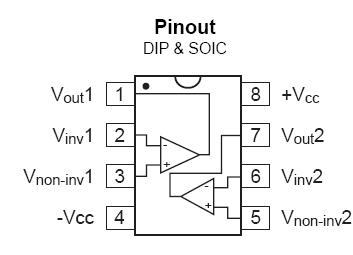

Pinout




Specifications

V_cc ..............................................................................................................±7V
I_out   short circuit protected to ground, however maximum reliabiliy
is obtained if I_out does not exceed... .......................................................125mA
common-mode input voltage .......................................................................±Vcc
maximum junction temperature .............................................................+150°C
operating temperature range: AJ .............................................-40°C to +85°C
storage temperature range ...................................................-65°C to +150°C
lead temperature (soldering 10 sec)...................................................... +300°C
ESD (100V machine test) ............................................................................1000V
Recommended gain range ..............................................................±1 to ±10V/V


Description

The CLC412 combines a high-speed complementary bipolar process with National's current-feedback topology to produce a very highspeed dual op amp. The CLC412 provides a 250MHz small-signal bandwidth at a gain of +2V/V and a 1300V/ms slew rate while consuming only 50mW per amplifier from ±5V supplies.

The CLC412 offers exceptional video performance with its 0.02% and 0.02° differential gain and phase errors for NTSC and PAL video signals while driving one back terminated 75W load. The CLC412 also offers a flat gain response of 0.1dB to 30MHz and very low channel-to-channel crosstalk of -76dB at 10MHz. Additionally, each amplifier can deliver a 70mA continuous output current. This level of performance makes the CLC412 an ideal dual op amp for highdensity broadcast-quality video systems.

The CLC412's two very well-matched amplifiers support a number of applications such as differential line drivers and receivers. In addition, the CLC412 is well suited for Sallen Key active filters in applications such as anti-aliasing filters for high-speed A/D converters. Its small 8-pin SOIC package, low power requirement, low noise and distortion allow the CLC412 to serve portable RF applications such as IQ-channels.
