CLC409

Features:

 350MHz small signal bandwidth
 -65/−72dBc 2nd/3rd harmonics (20MHz)
 Low noise
 8ns settling to 0.1%
 1200V/µs slew rate
 13.5mA supply current (±5V)
 60mA output current


Application

 Flash A/D driver
 D/A transimpedance buffer
 Wide dynamic range IF amp
 Radar/communication receivers
 DDS post-amps
 Wideband inverting summer
 Line driver

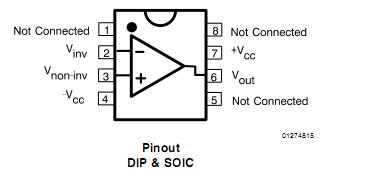

Pinout




Specifications

Supply Voltage (VCC)                                            ±7V  IOUT
Output is short circuit protected to
ground, but maximum reliability will
be maintained if IOUT does notexceed...                   60 mA
Common Mode Input Voltage                                     ±VCC
Differential Input Voltage                                              10V
Junction Temperature                                               +150˚C
Operating Temperature Range                    −40˚C to +85˚C
Storage Temperature Range                     −65˚C to +150˚C
Lead Solder Duration (+300˚C)                                 10 sec
ESD rating (human body model)                                1000V


Description

The CLC409 is a very wideband, DC coupled monolithic operational amplifier designed specifically for wide dynamic range systems requiring exceptional signal fidelity. Benefit- ing from National's current feedback architecture, the CLC409 offers a gain range of ±1to ±10 while providing stable, oscillation free operation without external compensa- tion, even at unity gain.
