CLC016

Features:

·Retimed data output
·Recovered clock output
·Auto and manual rate select modes
·Four user-configurable data rates
·No potentiometers required
·External loop bandwidth control
·Frequency detector for lock acquisition
·Carrier detect output
·Output MUTE function
·Single supply operation: +5V or −5.2V
·Low cost


Application

·SMPTE 259M serial digital interfaces: NTSC/PAL, 4:2:2 component, 360 Mbps wide screen
·Serial digital video routing and distribution
·Clock and data recovery for high-speed data transmission
·Re-synchronization of serial data for SONET/SDH, ATM, CAD networks, medical and industrial imaging

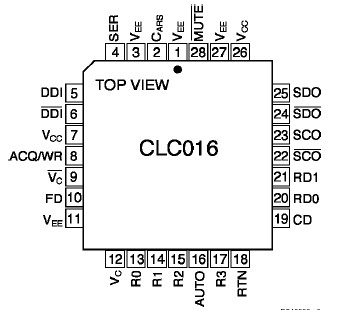

Pinout




Specifications

Supply Voltage (V_CCV_EE)                                  −0.3, +6.0V
Maximum Junction Temperature                                 +150
Storage Temperature Range                       −65 to +150
Lead Temperature (Soldering 4 sec)                          +260
ESD Rating (Note 12)                                                      2kV
Package Thermal Resistance
_JA 28-Pin PLCC                                                         85/W
_JC 28-Pin PLCC                                                         35/W
Reliability Information
MTTF (based on limited life
test data)                                                      2.6 x 10⁷ hours


Description

National's Comlinear CLC016 is a low-cost, monolithic, data retiming phase-locked loop (PLL) designed for high-speed serial clock and data recovery. The CLC016 simplifies highspeed data recovery in multi-rate systems by incorporating auto-rate select (ARS) circuitry on chip. This function allows the user to configure the CLC016 to recognize up to four different data rates and automatically adjust to provide accurate, low-jitter clock and data recovery. A single resistor is used to set each data rate anywhere between 40 Mbps and 400 Mbps. No potentiometers, crystals, or other external ICs are required to set the rate.

The CLC016 has output jitter of only 130 pspp at a 270 Mbps data rate and 0.25% fractional loop bandwidth. Low phase detector output offset and low VCO injection combine to ensure that the CLC016 does not generate bit errors or large phase transients in response to extreme fluctuations in data transition density. The result is improved performance when handling the pathological patterns inherent in the SMPTE 259M video industry standard.
