CL432A

Features:

` Temperature-Compensated: 50ppm/
` Trimmed 1% Bandgap Reference
` Internal Amplifier with 150mA Capability
` Nominal Temperature Range Extended to 105
` Low Frequency Dynamic Output Impedance: < 150m
` Low Output Noise

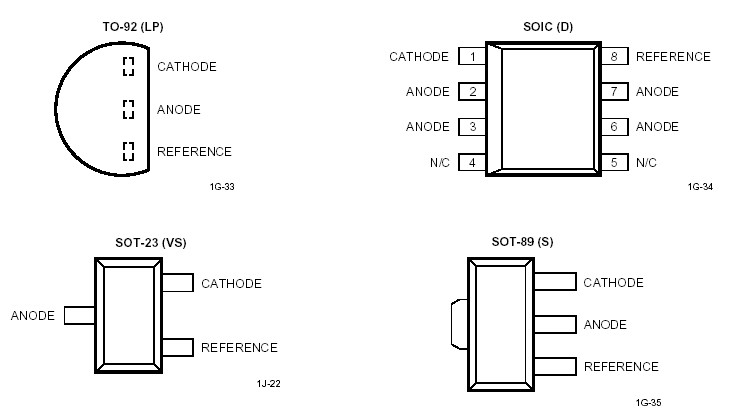

Pinout




Specifications

SYMBOL	PARAMETER	RATING	UNITS
VKA	Cathode-Anode Reverse Breakdown	10	V
IAK	Anode-Cathode Forward Current	1	A
IKA	Operating Cathode Current	100	mA
IREF	Reference Input Current	1	mA
PD	Continuous Power at 25 TO-92 8L SOIC SOT-23 SOT-89	775 750 1000 200	mW mW mW mW
TJ	Junction Temperature	150
TSTG	Storage Temperature	65 to 150
TL	Lead Temperature, Soldering 10 Seconds	300

Description

Calogic's CL432A is a 3-terminal Adjustable Shunt Regulator highly accurate 1.25V bandgap reference with a 1% tolerance. The device offers thermal stability, wide operating current (100mA) and an extended temperature range of 0o to 105oC for operation in power supply applications. The CL432A offers a wide operating voltage range of up to 10V and is an excellent choice for voltage reference requirements in an isolated feedback circuit for 3.0V to 3.3V switching mode power supplies. The tight tolerance guarantees a lower design cost for the power supply manufacturer by virtually eliminating the need for an extra power supply manufacturing process of the power supply.
CL432A is housed in several package options to meet the designers criteria.
