CL-PS6700

Features:

`Direct interface to CL-PS7111 low-power microcontroller
       - Custom multiplexed address/data bus for low pin count
       - Supports 13- and 18-MHz operating frequencies
`Fully compatible with PC Card (PCMCIA) Release 2.01 specification
`One or two CL-PS6700s per system
`Low power states
       - Operating (25 mW, typical)
       - Idle
       - Standby (virtually zero power drain)
`Support for PC Card hot insertion and removal
`Read and write buffers
`Support for 3.3- and 5-V PC Cards
`Endian conversion
`Supports the following PC Cards:
       - Memory-only card; flash, EPROM, or SRAM
       - I/O card; modem and communications
       - Cards configured as both I/O and memory
       - DMA-capable cards (through software emulation)
`100-pin VQFP package

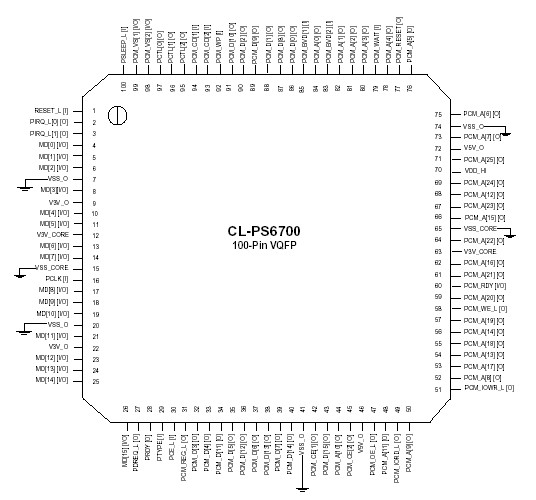

Pinout




Specifications

Description	Absolute Maximum Rating
Ambient temperature under bias	0 to 70
Storage temperature	-65 to 150
Voltage on any pin with respect to ground	0.3 to VCC + 0.5 V
Operating power dissipation	100 mW
Standby state power dissipation	10 W
Power supply voltage	7 V
Injection current (latch up)	25 mA

Description

The CL-PS6700 connects directly to a PC Card (PCMCIA) Release 2.01 socket and has a custom interface to the CL-PS7111 microcontroller. The CL-PS7111 can support up to two CL-PS6700 devices, which allows up to two PC Card sockets per system. Addresses and data are passed to the CL-PS6700 through 16 bits of the 32-bit Data bus (D[15:0]).

The PC Card socket is effectively isolated by the CL-PS6700. Except for power and ground pins, the pins on the socket only connect to the rest of the system through the CL-PS6700.
