CHV2711-QJ

Features: Internal Pre-matchingSingle Supply operationPower Gain 8 dBESD Protection on boardCurrent Control for multiple applications2.5% EVM @ 26.5 dBm avg power, 802.16 OFDMsignal format, PAR = 9 dBPlastic Surface mount packagingLow Thermal ResistanceIdeal for WiMAX applicationsLead Free and RoH...

product image

CHV2711-QJ Picture
See larger image
SeekIC No. : 004313458 Detail

CHV2711-QJ: Features: Internal Pre-matchingSingle Supply operationPower Gain 8 dBESD Protection on boardCurrent Control for multiple applications2.5% EVM @ 26.5 dBm avg power, 802.16 OFDMsignal format, PAR = 9 ...

CHV2711-QJ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CHV2711-QJ
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Internal Pre-matching
Single Supply operation
Power Gain 8 dB
ESD Protection on board
Current Control for multiple applications
2.5% EVM @ 26.5 dBm avg power, 802.16 OFDM signal format, PAR = 9 dB
Plastic Surface mount packaging
Low Thermal Resistance
Ideal for WiMAX applications
Lead Free and RoHS compliant 6x6 QFN package


Pinout

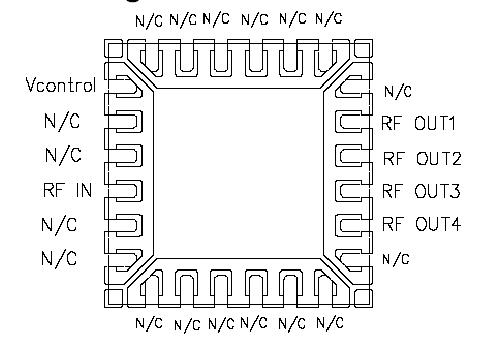

Connection Diagram


Specifications

Voltage Supply (Vcc) 4.5 (min) / 12 V (max)
Current (Icc) 2000 mA
Dissipated Power (Pdiss) 18W
Input Power (Pin) 22 dBm
Storage Temperature (Tstg) -60 to +150 ºC
Channel Temperature (Tch) 175 ºC
Thermal Resistance (Rth) 5 ºC/W
Operating Backside Temperature (Tb) -40 ºC to (see note 1)



Description

The CHV2711 internally pre-matched power HBT device provides 8 dB of gain, 2.5% EVM at 26.5 dBm output power for 802.16 OFDM signal with a peak to average power ratio of 9 dB. CHV2711-QJ operates off a single supply voltage up to 12V and includes internal bias circuitry to enable exact setting of the quiescent current using an external Vcontrol. This Vcontrol is non-unique voltage setting and the same value can be used for each part depending on the required Icq. CHV2711-QJ is ideal for high linearity, high data rate applications such as WiMAX. Internal pre-matching facilitates a simplified external matching approach and the highest in-band gain potential of the device. CHV2711-QJ operates with unique matching at each of the popular WiMAX bands with the inherent repeatability of an InGaP HBT process.
