CH5101A

Features:

·352 x 288 monochrome active pixel array, 1/3 inch lens format ¥
·Programmable formats CIF 352x288, QCIF 176x144, CCIR601 704x288
·Digital output CCIR601 4:2:2 (8-bit)
·Multidimensional automatic shutter control
·Below 1 LUX sensitivity
·Programmable I2C Serial bus control:
        - Frame rate: 30fps-1fps in eight steps
        - Gamma correction
        - Shutter speed
        - Analog gain
        - 16 backlight compensation zones
        - Black clamp level
        - Power down modes
·Stand-alone 25fps PAL and 30fps NTSC operation with all automatic features
·Single crystal operation: Video timing on-chip
·Single 5V power supply
·Less than 0.5 watt power dissipation

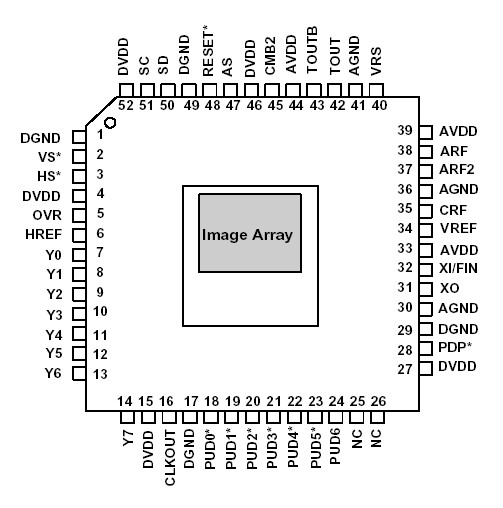

Pinout




Specifications

Symbol	Description	Min	Typ	Max	Units
	VDD relative to GND	- 0.5		7.0	V
	Input voltage of all digital pins1	GND - 0.5		Vdd + 0.5	V
TSTOR	Storage temperature	- 65		150
TJ	Junction temperature			150
TVPS	Vapor phase soldering (one minute)			220

Description

The CH5101 is a single chip active pixel CMOS monochrome video camera with digital video output in several formats. Using sophisticated noise correction circuitry to minimize fixed pattern noise and dark current effects, the CH5101 provides a supurb quality picture in a low cost device.

The CH5101 uses a proprietary autoshutter algorithm to dynamically control the shutter time, analog gain, and black clamp level, providing optimum picture and contrast under all lighting conditions. The CH5101 also incorporates extensive on-chip programmable digital signal processing to maximize the usefulness of the device in processor driven applications. This includes 16 programmable zones for backlight compensation, allowing the user to adjust the image to their unique lighting environment.

Additionally, at power-up the backlight compensation zone, power-up condition, and direct A/D output modes are selectable without IIC control by using the PUD pins. Requiring a minimum of parts for operation, the CH5101 provides a low cost camera for the next generation videophone, toy, and surveillance products.
