CGS2536TV

Features:

`Guaranteed:
1.0 ns rise and fall times while driving 12 inches of 50 microstrip terminated with 25 pF
350 ps pin-to-pin skew (t<sub>OSLH</sub> and t<sub>OSHL</sub>)
`650 ps part-to-part variation on positive or negative transition
`Operates with either 3.3V or 5.0V supply
`Inputs 5V tolerant with VCC in 3.3V range
`Symmetric output current drive: 24 mA I<sub>OH</sub>/I<sub>OL</sub>
`Industrial temperature of -40 to +85
`Symmetric package orientation
`Large fanout for memory driving applications
`Guaranteed 2 kV ESD protection
`Implemented on National's ABT family process
`28-pin PLCC for optimum skew performance

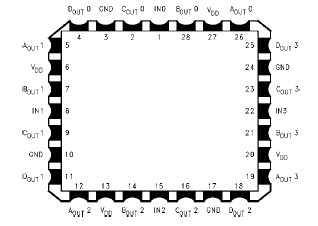

Pinout




Specifications

Supply Voltage (V_CC)                                              7.0V
Input Voltage (V_I)                                                   7.0V
Input Current                                                      -30 mA
Current Applied to Output
(High/Low)                               Twice the Rated I_OH/I_OL
Operating Temperature
Industrial Grade                                       -40 to +85
Commercial grade                                        0 to +70
Storage Temperature Range                  -65 to +150
                                            Airflow                Typical JA
                                             0 LFM                      62/W
                                             225 LFM                  43/W
                                             500 LFM                  34/W
                                             900 LFM                  27/W


Description

These Clock Generation and Support clock drivers are specifically designed for driving memory arrays requiring large fanouts while operating at high speeds.

CGS2536TV meets the rise and fall time requirements of the 90 MHz and 100 MHz PentiumTM procrssors.

The CGS2536 I/O structures are CMOS. The outputs are separated into two banks of eight. One bank consists of divide by two outputs, the other, straight-through buffers. Within each bank, half the outputs are inverting, the other half non-inverting.

The CGS2536 specification guarantees part-to-part skew variation.
