CGB240

RF Amplifier GaAs Power FET

product image

CGB240 Picture
SeekIC No. : 00613101 Detail

CGB240: RF Amplifier GaAs Power FET

floor Price/Ceiling Price

Part Number:
CGB240
Mfg:
TriQuint Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Operating Frequency : 2.4 GHz to 2.5 GHz Operating Supply Voltage : 2 V to 5.5 V
Supply Current : 125 mA Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT Package / Case : MSOP-10
Packaging : Reel

Description

Noise Figure :
Bandwidth :
Output Intercept Point :
Type :
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 85 C
Packaging : Reel
Supply Current : 125 mA
Operating Frequency : 2.4 GHz to 2.5 GHz
Operating Supply Voltage : 2 V to 5.5 V
Package / Case : MSOP-10


Features:

`Single voltage supply.
`Wide operating voltage range 2.0 - 5.5 V.
`POUT = 23 dBm at VC = 3.2 V.
`Overall power added efficiency (PAE) typi-cally 50%.
`High PAE at lowpower mode.
`Analog power control with four power steps.
`Straight-Forward Matching; Few external components.



Application

Bluetooth Class 1
Cordless Phones
Home RF

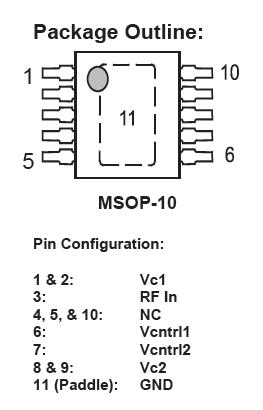

Pinout

  Connection Diagram


Specifications

Parameter Symbol Min. Max. Units
Supply voltage- CW Vcc 0 5.5 Vdc
Supply voltage- Pulsed Vcc 0 5.0 Vdc
Power control voltage Vapc 0 3.2 V
DC supply current- Stage 1 Icc 0 40.0 mA
DC supply current- Stage 2 Icc 0 160.0 mA
Total Power Dissipation1 PTOT   0.5 W
RF Input Power2 PIN, MAX   +10 dBm
RF Output Power2 POUT, MAX   +25 dBm
Operating case temperature Ta -20 85
Storage temperature Ts -55 150



Description

The CGB240 GaAs Power Amplifier MMIC has been especially developed for wireless applications in the 2.4 - 2.5 GHz ISM band (e.g. Bluetooth class 1). Its high power added efficiency and single positive sup-ply operation makes the device ideally suited to handheld applications. CGB240 delivers 23 dBm output power at a supply voltage of 3.2 V, with an overall PAE of 50%. The output power can be ad-justed using an analog control voltage (VCTR). Simple external input-, interstage-, and output matching cir-cuits are used to adapt to the different requirements of linearity and harmonic suppression in various ap-plications.

For WLAN applications (IEEE802.11b) or appli-cations serving both WLAN and Bluetooth, we recommend to use the CGB240B device.


Parameters:

Technical/Catalog InformationCGB240
VendorTriquint Semiconductor Inc
CategoryRF and RFID
Package / Case10-MSOP
Voltage - Supply2V ~ 5.5V
Current - Supply160mA
Gain26dB
Frequency2.4GHz ~ 2.5GHz
RF TypeISM
PackagingTape & Reel (TR)
Noise Figure-
P1db-
Test Frequency-
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names CGB240
CGB240
