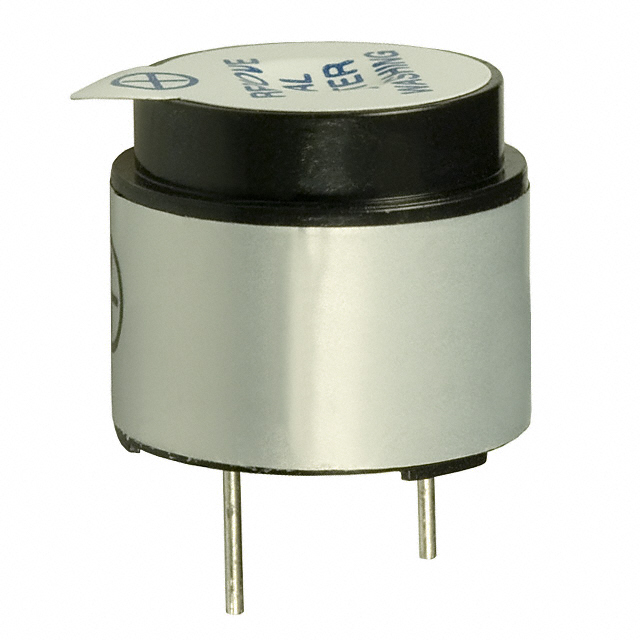

CEM-1612

Driver Circuitry: Transducer, Externally Driven
Input Type: zero-peak Signal
Operating Mode: Continuous
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Bulk
Series: CEM
Manufacturer: CUI Inc
Technology: Magnetic
Frequency: 2.048kHz
Washable: Yes
Current - Supply: 40mA
Voltage - Rated: 12Vo-p
Sound Pressure Level: 85dB @ 12V, 10cm
Size / Dimension: Circular - 16.00mm Dia x 14.50mm H
Voltage Range: 6 ~ 18V


Specifications

recommended circuits: click here

rated voltage: 12Vo-p

operating voltage: 6-18Vo-p

mean current: 40mA

coil resistance: 115Ω ±17.0

coil impedance: 200Ω

sound pressure level: 85dB

rated frequency: 2048 Hz ±200

operating temperature: -20 to +60°C

storage temperature: -30 to +70°C

diameter: 16.0 mm

depth: 14.0 mm

weight: 4.6 grams

termination: PC pins

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	CEM-1612
Vendor	CUI Inc
Category	Audio Products
Type	Magnetic Transducer, External Drive
Sound Pressure Level	85dB
Mounting Type	Through Hole
Capacitance @ Frequency	-
Frequency	2.048kHz
Packaging	Bulk
Operating Mode	Continuous
Voltage Range	6 ~ 18Vo-p
Voltage - Rated	12Vo-p
Current Rating	40mA
Size / Dimension	Circular - 16mm Dia x 14mm H
Termination	Solder Pins/Posts
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CEM 1612 CEM1612 102 1114 ND 1021114ND 102-1114
