CEB-44D06

BUZZER PIEZO ELEMENT .6KHZ 44MM

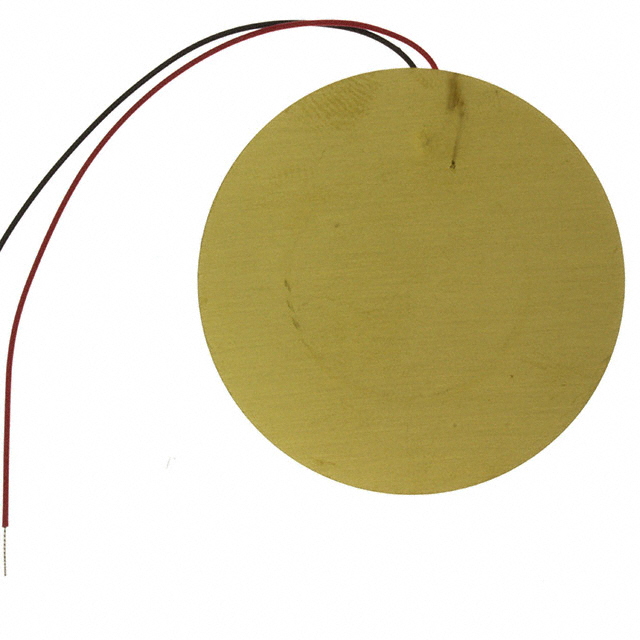

product image

CEB-44D06 Picture
See larger image
SeekIC No. : 002844743 Detail

CEB-44D06: BUZZER PIEZO ELEMENT .6KHZ 44MM

CEB-44D06 Data Sheet

floor Price/Ceiling Price

US $ .53~1.33 / Piece | Get Latest Price
Part Number:
CEB-44D06
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $1.33
  • $1.1
  • $.81
  • $.65
  • $.59
  • $.53
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CEB Manufacturer: CUI Inc
Frequency: 0.6kHz Type: Standard
Impedance: 1 kOhm Voltage - Input (Max): 20V p-p
Capacitance @ Frequency: 70000pF @ 120Hz Size: 1.73" Dia (44mm)
Dimensions : 10.5 mm x 13.5 mm

Description

Series: CEB
Manufacturer: CUI Inc
Type: Standard
Termination: Wire Leads
Voltage - Input (Max): 20V p-p
Frequency: 0.6kHz
Impedance: 1 kOhm
Capacitance @ Frequency: 70000pF @ 120Hz
Size: 1.73" Dia (44mm)


Specifications

  • recommended circuits: click here
  • operating voltage: 20Vp-p max
  • resonant frequency: 0.6kHz ±0.3
  • resonant impedence: 1000Ω
  • electrostatic capacity: 70,000 ±30%
  • operating temperature: -20 to +70°C
  • storage temperature: -30 to +80°C
  • diameter: 44.0 mm
  • depth: 0.23 mm
  • weight: 5.1 grams
  • material: brass
  • termination: wire leads
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationCEB-44D06
    VendorCUI Inc
    CategoryAudio Products
    Frequency0.6kHz
    Capacitance @ Frequency70000pF @ 120Hz
    Voltage - Input, Max20V p-p
    Impedance1K Ohm
    PackagingBulk
    Size1.73" Dia (44mm)
    TypeStandard
    Lead Free StatusContains Lead
    RoHS StatusRoHS Non-Compliant
    Other Names CEB 44D06
    CEB44D06
    102 1170 ND
    1021170ND
    102-1170
