CDQ0303-QS

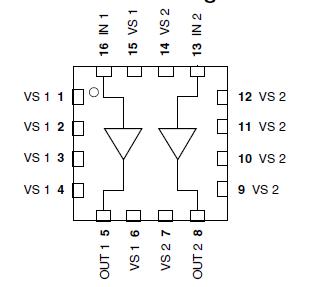

The CDQ0303-QS is a dual, ultra low-noise amplifier combining high gain, state-of-the-art noise figure and high IP3. Utilizing Mimix's distinctive in-house GaAs fabrication advantage and matched pair technology, co-located matched transistor die are assembled in the 4mm x 4mm QFN package. The low-cost, surface-mount, 16 terminal, plastic package is also lead-free.

Packaging a matched pair of ultra low-noise devices in a single package makes the CDQ0303-QS an ideal product for balanced amplifier implementation. It is intended for many applications operating in the 900 MHz to 2400 MHz frequency range. It can also be used in a dual-band configuration where a single transistor is used for each band.

Mimix's high performance packaged pHEMTs are ideal for use in all applications where low-noise figure, high gain, medium power and good intercept is required. The CDQ0303-QS is the perfect solution for the first or second stage of a base station LNA due to the excellent combination of low-noise figure and linearity. It is also well suited as a medium power driver stage in pole-top amplifiers and other transmit functions, particularly as the low thermal resistance allows extended power dissipation when voltage and current are adjusted for increased power and linearity.
