CDC930

Features: Generates Clocks for Pentium®4 MicroprocessorsUses a 14.318 MHz Crystal Input to Generate Multiple Output FrequenciesIncludes Spread Spectrum Clocking (SSC), 0.6% Downspread for Reduced EMI With Theoretical EMI Damping of 7 dB†Power Management Control TerminalsLow Output Skew ...

product image

CDC930 Picture
See larger image
SeekIC No. : 004312268 Detail

CDC930: Features: Generates Clocks for Pentium®4 MicroprocessorsUses a 14.318 MHz Crystal Input to Generate Multiple Output FrequenciesIncludes Spread Spectrum Clocking (SSC), 0.6% Downspread for Reduc...

CDC930 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CDC930
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Generates Clocks for Pentium®4 Microprocessors
 Uses a 14.318 MHz Crystal Input to Generate Multiple Output Frequencies
 Includes Spread Spectrum Clocking (SSC), 0.6% Downspread for Reduced EMI With Theoretical EMI Damping of 7 dB†
 Power Management Control Terminals
 Low Output Skew and Jitter for Clock Distribution
 Operates From Single 3.3-V Supply
 Consumes Less Than 30-mA Power-Down Current
 Generates the Following Clocks:
   4 HCLK (Host) (Different Pairs 100/133 MHz)
   1 3VMREF Pair (3.3 V, 180° Shifted 50/66 MHz)
   10 PCI (3.3 V, 33.3 MHz)
   2 REF (3.3 V, 14.318 MHz)
   4 3V66 MHz (3.3 V, 66 MHz)
   2 3V48 MHz (3.3 V, 48 MHz)
 Packaged in 56-Pin SSOP Package

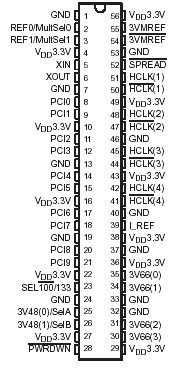

Pinout

Connection Diagram


Specifications

Supply voltage range, VDD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 4.6 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VDD + 0.5 V
Voltage range applied to any output in the high-impedance state or power-off state,
    VO (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .0.5 V to VDD + 0.5 V
Current into any output in the low state, IO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2* rated IOL
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . 18 mA
                                      (VI < VDD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . 18 mA
Output clamp current , IOK (VO < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . . . . . . .50 mA
                                           (VO < VDD)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .50 mA
Package thermal impedance, JA (see Note 2)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74°C/W
Maximum power dissipation at TA = 55°C (in still air) (see Note 3)  . . . . . . . . . . . . . .. . . . . . . . . . .1.3 W
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . .0°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . .  . . . . . . . . . . . .260°C


Description

The CDC930 is a differential clock synthesizer/ driver that generates HCLK/HCLK, 3VMREF/ 3VMREF, PCI, 3V66, 3V48, REF system clock signals to support a computer system with a Pentium®4 microprocessor and a Direct RambusTM memory subsystem.

All CDC930 output frequencies are generated from a 14.318-MHz crystal input. A reference clock input can be provided at the XIN input instead of a crystal. Two phase-locked loops (PLLs) are used to generate the host frequencies and the 48-MHz clock frequencies. On-chip loop filters and internal feedback eliminate the need for external components. The host, PCI clock and 48-MHz clock outputs provide low-skew/low-jitter clock signals for reliable clock operation. All CDC930 outputs have 3-state capability, which can be selected using control inputs SEL133, SelA and SelB.

The CDC930 outputs are either differential host clock or 3.3-V single-ended CMOS buffers. When PWRDWN is set to high, the device operates in normal mode. When PWRDWN is set low, the device transitions to a power-down mode in which HCLK is driven at 2×IREF, HCLK is not driven, and all others are set low.
