CDB8420

Audio IC Development Tools Eval Bd Digital Audio SRC

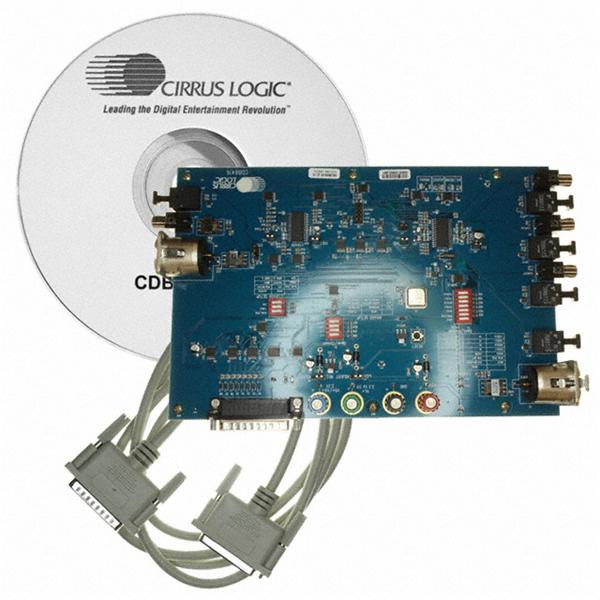

product image

CDB8420 Picture
See larger image
SeekIC No. : 00106325 Detail

CDB8420: Audio IC Development Tools Eval Bd Digital Audio SRC

CDB8420 Data Sheet

floor Price/Ceiling Price

US $ 355.75~364.5 / Piece | Get Latest Price
Part Number:
CDB8420
Mfg:
Cirrus Logic
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~2
  • 2~5
  • 5~10
  • Unit Price
  • $364.5
  • $361.58
  • $358.67
  • $355.75
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Audio DSP Tool Is For Evaluation Of : CS8420
Operating Supply Voltage : 5 V

Description

Product :
Operating Supply Voltage : 5 V
Type : Audio DSP
Tool Is For Evaluation Of : CS8420


Features:

Asynchronous Sample Rate Conversion
Input to output conversion ratio as large as 1:3 or 3:1
Receives and transmits AES/EBU, S/PDIF and EIAJ-340 compatible digital audio
Runs from a single 5 Volt supply.
Crystals are supplied to allow operation at 44.1 kHz, 48 kHz, and 96 kHz output sample rates.
Digital patch area.


Description

The CDB8420 is designed to allow rapid evaluation of the CS8420. Because of the high performance of the CS8420, the board is set up for easy connection to an Audio Precision or a Rohde and Schwarz test system. Currently available A/D and D/A converters are not adequate to test the full performance of the device.

CDB8420 Input and output data may independently be set to either AES/EBU or S/PDIF in optical or coaxial physical formats.

Windows 98 PC software provides a GUI interface to make configuration easy. CDB8420 software communicates through the PC's RS232 port to a micro-controller on the evaluation board that controls the CS8420. All the possible software modes of the CS8420 may be tested.




Parameters:

Technical/Catalog InformationCDB8420
VendorCirrus Logic Inc
CategoryProgrammers, Development Systems
Main PurposeAudio, Sample Rate Converter
Primary AttributesSample Rate Converter with Digital Audio Transmitter and Receiver
Secondary Attributes44.1, 48, 96 kHz Output Sample Rates, AES/EBU, S/PDIF, EIAJ-340, GUI
Supplied ContentsBoard
Utilized IC / PartCS8420
EmbeddedYes, MCU, 8-Bit
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names CDB8420
CDB8420
598 1782 ND
5981782ND
598-1782
