CDB7620-000

DIODE SCHOTTKY 2V CHIP

product image

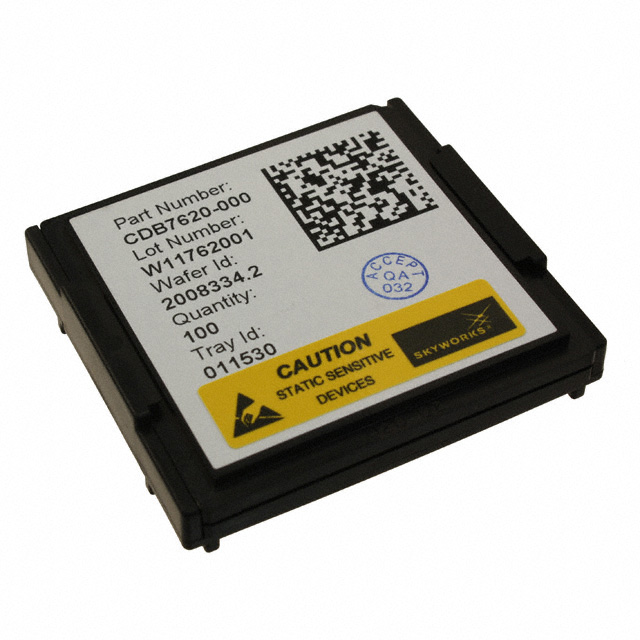

CDB7620-000 Picture
SeekIC No. : 003434693 Detail

CDB7620-000: DIODE SCHOTTKY 2V CHIP

floor Price/Ceiling Price

US $ 1.04~1.73 / Piece | Get Latest Price
Part Number:
CDB7620-000
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~100
  • 100~500
  • 500~1000
  • Unit Price
  • $1.73
  • $1.2
  • $1.04
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Skyworks Solutions Inc
Diode Type: Schottky - Single Voltage - Peak Reverse (Max): 2V
Current - Max: - Capacitance @ Vr, F: 0.15pF @ 0V, 10MHz
Resistance @ If, F: 30 Ohm @ 10mA, 10MHz Power Dissipation (Max): -
Package / Case: Die Chip Supplier Device Package: Chip
Package / Case : 9030EF

Description

Series: -
Power Dissipation (Max): -
Diode Type: Schottky - Single
Current - Max: -
Manufacturer: Skyworks Solutions Inc
Voltage - Peak Reverse (Max): 2V
Packaging: Bulk
Package / Case: Die Chip
Supplier Device Package: Chip
Capacitance @ Vr, F: 0.15pF @ 0V, 10MHz
Resistance @ If, F: 30 Ohm @ 10mA, 10MHz


Features:

For Detector and Mixer Applications
Low Capacitance for Usage Beyond 40 GHz
ZBD and Low Barrier Designs
P-Type and N-Type Junctions
Large Bond Pad Chip Design



Description

CDB7620-000 Alpha's product line of silicon Schottky diode chips are intended for use as detector and mixer devices in hybrid integrated circuits at frequencies from below 100 MHz to higher than 40 GHz. Alpha's "Universal Chip" design features a 4 mil diameter bond pad that is offset from the semiconductor junction preventing damage to the active junction as a result of wire bonding.

As power-sensing detectors, these Schottky diode chips CDB7620-000 all have the same voltage sensitivity so long as the outpu video impedance is much higher than the video resistance of the diode. Figure 1 shows the expected detected voltage sensitivity as a function of RF source impedance in an untuned circuit. Note that sensitivity is substantially increased by transforming the source impedance from 50  Ω to higher values. CDB7620-000 Maximum sensitivity occurs when the source impedance equals the video resistance.

In a detector circuit operating at zero bias, depending on the video load impedance, a ZBD device with RV less than 10 kΩ may be more sensitive than a low barrier diode with RV greater than 100 kΩ. Applying forward bias reduces the diode video resistance as shown in Figure 2. Lower video resistance also increases the video bandwidth but does not increase voltage sensitivity, as shown in Figure 3. Biased Schottky diodes have better temperature stability and also may be used in temperature compensated detector circuits. CDB7620-000 P-type Schottky diodes generate lower 1/F noise and are preferred for Doppler mixers and biased detector applications.The bond pad for the P-type Schottky diode is the cathode.N-type Schottky diodes CDB7620-000 have lower parasitic resistance, RS, and will perform with lower conversion loss in mixer circuits. The bond pad for the N-type Schottky diode CDB7620-000 is the anode.
