Product Details

Description

Features:

Socketed CS61318 Line Interface
All Required Components for CS61318 Evaluation
LED Status Indications for Alarm Conditions and Operating Status
Support for Hardware and Host Modes

Pinout

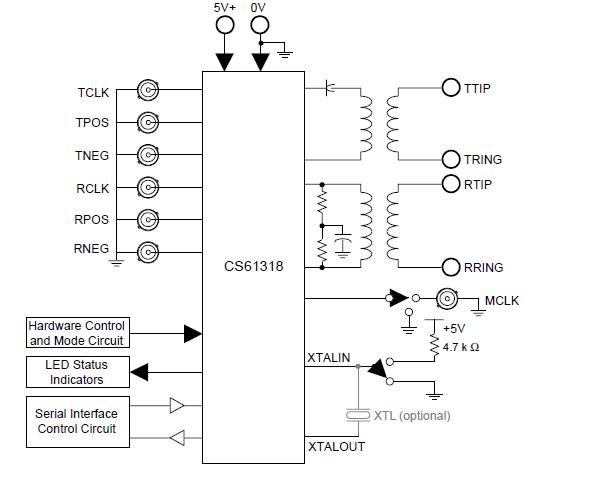

Connection Diagram

Description

The CDB61318 evaluation board includes a socketed CS61318 line interface device and all support components necessary for evaluation. The board is powered by an external +5 Volt supply.

The CDB61318 board may be configured for 75 W coax E1 or 120 W twisted-pair E1 operations. Binding posts and bantam jacks are provided for the line interface connections. Several BNC connectors provide clock and data I/O at the system interface. Reference timing may be derived from a quartz crystal or an external reference clock. Four LED indicators monitor device alarm conditions and operating status.
