CD74HCT154

Features: *Two Enable Inputs to Facilitate Demultiplexing and Cascading Functions*Fanout (Over Temperature Range) -Standard Outputs. . . . . . . . . . . 10 LSTTL Loads -Bus Driver Outputs . . . . . . . . . .15 LSTTL Loads*Wide Operating Temperature Range . . .-55 to 125*Balanced Propagation Delay ...

product image

CD74HCT154 Picture
See larger image
SeekIC No. : 004312104 Detail

CD74HCT154: Features: *Two Enable Inputs to Facilitate Demultiplexing and Cascading Functions*Fanout (Over Temperature Range) -Standard Outputs. . . . . . . . . . . 10 LSTTL Loads -Bus Driver Outputs . . . . . ...

CD74HCT154 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CD74HCT154
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Two Enable Inputs to Facilitate Demultiplexing and Cascading Functions
*Fanout (Over Temperature Range)
  -Standard Outputs. . . . . . . . . . . 10 LSTTL Loads
  -Bus Driver Outputs . . . . . . . . .  .15 LSTTL Loads
*Wide Operating Temperature Range . . .-55 to 125
*Balanced Propagation Delay and Transition Times
*Significant Power Reduction Compared to LSTTL Logic ICs
*HC Types
  -2V to 6V Operation
  -High Noise Immunity:NIL=30%,NIH =30%of VCC at VCC= 5V
*HCT Types
  -4.5V to 5.5V Operation
  -Direct LSTTL Input Logic Compatibility,
    VIL= 0.8V (Max), VIH= 2V (Min)
*CMOS Input Compatibility,II A at VOL , VOH


Application

Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless


Pinout

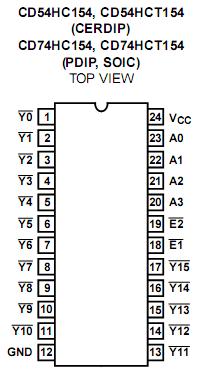

Connection Diagram


Specifications

DC Supply Voltage, VCC. . . . . . . . . . . .. . ..-0.5V to 7V
DC Input Diode Current, IIK
    For VI < -0.5V or VI  > VCC + 0.5V. . . .. . .  .±20mA
DC Output Diode Current, IOK
    For VO < -0.5V or VO > VCC + 0.5V . . .. . . ..±20mA
DC Output Source or Sink Current per Output Pin, IO
    For VO < -0.5V or VO > VCC + 0.5V . . .. . . ..±25mA
DC VCC  or Ground Current, ICC or IGND. . . . ..±50mA




Description

    The 'HC154 and 'HC154 are 4- to16-line decoders/demultiplexers with two enable inputs,E1 and E2.A High on either enable input forces the output in to the High state.CD74HCT154 demultiplexing function is performed by using the four input lines,A0 to A3,to select the output lines Y0 to Y15,and using one enable as the data input while holding the other enable low.
