Features:

• Buffered Inputs
• Typical Propagation Delay: 8ns at VCC = 5V,CL = 15pF, TA = 25
• Fanout (Over Temperature Range)
  - Standard Outputs . . . . . . . . . . . . . . . . 10 LSTTL Loads
  - Bus Driver Outputs . . . . . . . . . .  . .. . . 15 LSTTL Loads
• Wide Operating Temperature Range . . . -55 to 125
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTL Logic ICs
• HC Types
  - 2V to 6V Operation
  - High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V
• HCT Types
  - 4.5V to 5.5V Operation
  - Direct LSTTL Input Logic Compatibility,VIL= 0.8V (Max), VIH = 2V (Min)
  - CMOS Input Compatibility, Il  1A at VOL, VOH


Pinout

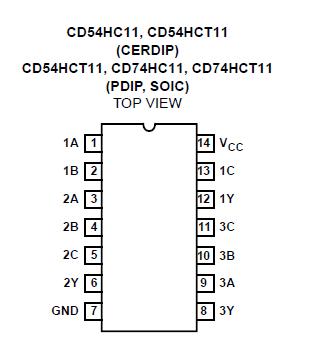

Connection Diagram


Specifications

DC Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 7V
DC Input Diode Current, IIK
For VI < -0.5V or VI > VCC + 0.5V . . . . . . . . . . . . . . .. . . .. .±20mA
DC Output Diode Current, IOK
For VO < -0.5V or VO > VCC + 0.5V . . . . . . . . . . . . . . . . .. . .±20mA
DC Output Source or Sink Current per Output Pin, IO
For VO > -0.5V or VO < VCC + 0.5V . . . . . . . . . . . . . . . . .  . .±25mA
DC VCC or Ground Current, ICC or IGND . . . . . . . . . .  . . . . . .±50mA


Description

The 'HC11 and 'HCT11 logic gates utilize silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. CD74HCT11 have the ability to drive 10 LSTTL loads. The HCT logic family is functionally pin compatible with the standard LS logic family.
