CD74HC7266

Features: • Four Independent EXCLUSIVE NOR Gates• Buffered Inputs and Outputs• Logical Comparators• Parity Generators and Checkers• Adders/Subtracters• Fanout (Over Temperature Range) - Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads - Bus Driver O...

product image

CD74HC7266 Picture
See larger image
SeekIC No. : 004312077 Detail

CD74HC7266: Features: • Four Independent EXCLUSIVE NOR Gates• Buffered Inputs and Outputs• Logical Comparators• Parity Generators and Checkers• Adders/Subtracters• Fanout (Ov...

CD74HC7266 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CD74HC7266
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Four Independent EXCLUSIVE NOR Gates
• Buffered Inputs and Outputs
• Logical Comparators
• Parity Generators and Checkers
• Adders/Subtracters
• Fanout (Over Temperature Range)
   - Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads
   - Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads
• Wide Operating Temperature Range . . . -55 to 125
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTLLogic ICs
• HC Types
  - 2V to 6V Operation
  - High Noise Immunity: NIL = 30%, NIH = 30%of VCC atVCC = 5V


Pinout

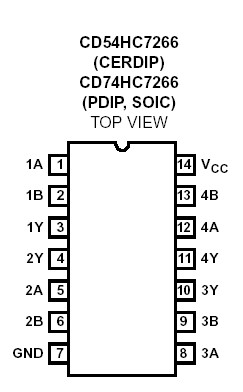

Connection Diagram


Specifications

DC Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 7V
DC Input Diode Current, IIK
For VI < -0.5V or VI > VCC + 0.5V . . . . . . . . . . . .   . . . . . .±20mA
DC Output Diode Current, IOK
For VO < -0.5V or VO > VCC + 0.5V . . . . . . . . . . . . . . . . . .±20mA
DC Output Source or Sink Current per Output Pin, IO
For VO > -0.5V or VO < VCC + 0.5V . . . . . . . . . . . . . . . . . .±25mA
DC VCC or Ground Current, ICC or IGND . . . . . . . . . . . . . .±50mA


Description

The 'HC7266 contains four independent Exclusive NORgates in one package. They provide the system designerwith a means for implementation of the EXCLUSIVE NORfunction.

CD74HC7266 is functionally the same as the TTL226. Theydiffer in that the 'HC7266 has active high and low outputs whereas the 226 has open collector outputs.
