Product Details

Description



Features:

Buffered Inputs
High Current Bus Driver Outputs
TypicalPropagationDelaytPLH ,tPHL =8nsatVCC=5V,
  CL  = 15pF, TA  = 25
Fanout (Over Temperature Range)
   - Standard Outputs. . . . . . . . . . . . . . . 10 LSTTL Loads
   - Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads
 Wide Operating Temperature Range . . . -55 to 125
Balanced Propagation Delay and Transition Times
Significant Power Reduction Compared to LSTTLLogic ICs
HC Types
   - 2V to 6V Operation
   - High Noise Immunity: NIL = 30%, NIH = 30% of VCCat VCC= 5V
HCT Types
   - 4.5V to 5.5V Operation
   - Direct LSTTL Input Logic Compatibility,
   VIL = 0.8V (Max), VIH= 2V (Min)
   - CMOS Input Compatibility, Il1Aat VOL ,VOH



Pinout

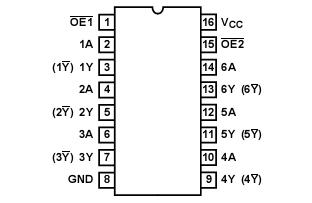

  Connection Diagram


Specifications

DC Supply Voltage, VCC. . . . . . . . . . . . . . . . . . . . . -0.5V to 7V
DC Input Diode Current, IIK
     For VI< -0.5V or V> VCC + 0.5V . . . . . .  . . . . . . . .±20mA
DC Output Diode Current, IOK
     For VO< -0.5V or VO> VCC + 0.5V . . . . . . . . . . . . . .±20mA
DC Drain Current, per Output, IO
     For -0.5V < VO < VCC + 0.5V . . . . . . . . .  . . . . . . . .±35mA
DC Output Source or Sink Current per Output Pin, IO
     For VO > -0.5V or VO< VCC + 0.5V . . . . . . . . . . .  . .±25mA
DC VCC or Ground Current, ICC   . . . . .. . . . . . . . . . . . .±50mA



Description

The 'HC365, 'HCT365, and 'HC366 silicon gate CMOS three-state buffers are general purpose high-speed non-invertingand inverting buffers. They have high drive current outputswhich enable high speed operation even when driving largebus capacitances. These circuits possess the low powerdissipation of CMOS circuitry, yet have speedscomparable tolow power Schottky TTL circuits. Both circuits are capable ofdriving up to 15 low power Schottky inputs.

The 'HC365 and 'HCT365 are non-inverting buffers, whereasthe 'HC366 is an inverting buffer. These devices have twothree-state control inputs (OE1 and OE2) which are NORedtogether to control all six gates.

The 'HCT365 logic families are speed, function and pincompatible with the standard LS logic family.
