CD74HC365E

Number of Input Lines : 6
Number of Output Lines : 6
Polarity : Non-Inverting
Supply Voltage - Max : 6 V
Supply Voltage - Min : 2 V
Maximum Operating Temperature : + 125 C
Packaging : Tube
Mounting Style : Through Hole
Package / Case : PDIP-16


Features:

• Buffered Inputs
• High Current Bus Driver Outputs
• Typical Propagation Delay tPLH, tPHL = 8ns at V_CC = 5V, C_L = 15pF, T_A = 25oC
• Fanout (Over Temperature Range)
- Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads
- Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads
• Wide Operating Temperature Range . . . -55oC to 125oC
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTL Logic ICs
• HC Types
- 2V to 6V Operation
- High Noise Immunity: NIL = 30%, NIH = 30% of VCC at V_CC = 5V
• HCT Types
- 4.5V to 5.5V Operation
- Direct LSTTL Input Logic Compatibility, VIL= 0.8V (Max), VIH = 2V (Min)
- CMOS Input Compatibility, Il 1µA at VOL, VOH

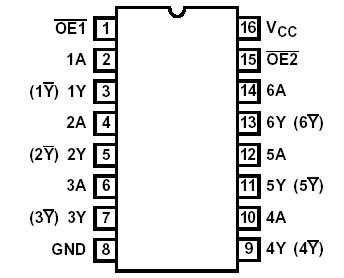

Pinout




Specifications

DC Supply Voltage, V_CC . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 7V
DC Input Diode Current, IIK
For V_I < -0.5V or V_I > V_CC + 0.5V . . . . . . . . . . . . . . . .  . . .±20mA
DC Output Diode Current, IOK
For V_O < -0.5V or V_O > V_CC + 0.5V . . . . . . . . . . . . . .  . . . .±20mA
DC Drain Current, per Output, I_O
For -0.5V < V_O < V_CC + 0.5V. . . . . . . . . . . . . . . . . . .  . .. . .±35mA
DC Output Source or Sink Current per Output Pin, IO
For V_O > -0.5V or VO < V_CC + 0.5V . . . . . . . . . . . . . . . . . . .±25mA
DC V_CC or Ground Current, I_CC . . . . . . . . . . . . . . . . . . . . . .±50mA


Description

The 'HC365, 'HCT365, and 'HC366 silicon gate CMOS threestate buffers are general purpose high-speed non-inverting and inverting buffers. They have high drive current outputs which enable high speed operation even when driving large bus capacitances.

These circuits possess the low power dissipation of CMOS circuitry, yet have speeds comparable to low power Schottky TTL circuits. Both circuits are capable of driving up to 15 low power Schottky inputs. The 'HC365 and 'HCT365 are non-inverting buffers, whereas the 'HC366 is an inverting buffer. These devices have two three-state control inputs (OE1 and OE2) which are NORed together to control all six gates.

The 'HCT365 logic families are speed, function and pin compatible with the standard LS logic family.
