CD74FCT844A

Features: • Buffered Inputs• Typical Propagation Delay: 6.8ns at VCC = 5V, TA = 25, CL = 50pF (FCT843A)• CD74FCT843A Noninverting• CD74FCT844A Inverting• SCR Latchup Resistant BiCMOS Process and Circuit Design• Speed of Bipolar FAST™/AS/S• 48mA Outpu...

product image

CD74FCT844A Picture
See larger image
SeekIC No. : 004311953 Detail

CD74FCT844A: Features: • Buffered Inputs• Typical Propagation Delay: 6.8ns at VCC = 5V, TA = 25, CL = 50pF (FCT843A)• CD74FCT843A Noninverting• CD74FCT844A Inverting• SCR Latchup Re...

CD74FCT844A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CD74FCT844A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Buffered Inputs
• Typical Propagation Delay: 6.8ns at VCC = 5V, TA = 25, CL = 50pF (FCT843A)
• CD74FCT843A
     Noninverting
• CD74FCT844A
     Inverting
• SCR Latchup Resistant BiCMOS Process and Circuit Design
• Speed of Bipolar FAST™/AS/S
• 48mA Output Sink Current
• Output Voltage Swing Limited to 3.7V at VCC = 5V
• Controlled Output Edge Rates
• Input/Output Isolation to VCC
• BiCMOS Technology with Low Quiescent Power




Pinout

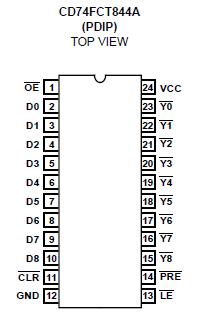

Connection Diagram


Specifications

DC Supply Voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . .. -0.5V to 6V
DC Input Diode Current, IIK (For VI < -0.5V) . . . . . . . . . . .  .- 20mA
DC Output Diode Current, IOK (for VO < -0.5V) . . . . . . . . . .  -50mA
DC Output Sink Current per Output Pin, IO . . . . . . . . . . . . . ..70mA
DC Output Source Current per Output Pin, IO . . . . . . . . . . .. -30mA
DC VCC Current (ICC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .237mA
DC Ground Current (IGND). . . . . . . . . . . . . . . . . . . . . . . . . . .453mA
