CD74FCT821A

Features: BiCMOS Technology With Low Quiescent PowerBuffered InputsNoninverted OutputsInput/Output Isolation From VCCControlled Output Edge Rates48-mA Output Sink CurrentOutput Voltage Swing Limited to 3.7 VSCR Latch-Up-Resistant BiCMOS Process and Circuit DesignProvide Extra Data Width Necessary...

product image

CD74FCT821A Picture
See larger image
SeekIC No. : 004311946 Detail

CD74FCT821A: Features: BiCMOS Technology With Low Quiescent PowerBuffered InputsNoninverted OutputsInput/Output Isolation From VCCControlled Output Edge Rates48-mA Output Sink CurrentOutput Voltage Swing Limite...

CD74FCT821A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CD74FCT821A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

BiCMOS Technology With Low Quiescent Power
 Buffered Inputs
 Noninverted Outputs
 Input/Output Isolation From VCC
 Controlled Output Edge Rates
 48-mA Output Sink Current
 Output Voltage Swing Limited to 3.7 V
 SCR Latch-Up-Resistant BiCMOS Process and Circuit Design
 Provide Extra Data Width Necessary for Wider Address/Data Paths or Buses With Parity
 Outputs Have Undershoot-Protection Circuitry
 Buffered Control Inputs Reduce dc Loading Effects
 Package Options Include Plastic Small-Outline (M) Package and Standard Plastic (EN) DIP

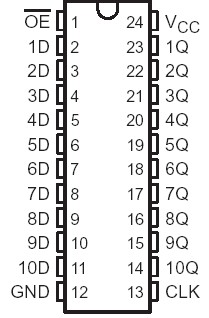

Pinout

Connection Diagram


Specifications

DC supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 6 V
DC input clamp current, IIK (VI < 0.5 V)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 mA
DC output clamp current, IOK (VO < 0.5 V)  . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .50 mA
DC output sink current per output pin, IOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .70 mA
DC output source current per output pin, IOH  . . . . . . . . . . . . . .. . . . . . . . . . . . . .. . .30 mA
Continuous current through VCC, (ICC)  . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . .  260 mA
Continuous current through GND  . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . .. .500 mA
Package thermal impedance, JA (see Note 1)  EN package  . .. . . . . . . . . . . . . . . . . .67°C/W
                                                                          M package . . . . . . . . . . . . . . . . . . . . 46°C/W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .. . . 65°C to 150°C


Description

The CD74FCT821A is a 10-bit flip-flop that features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. It is particularly suitable for implementing wider buffer registers, I/O ports, bidirectional bus drivers with parity, and working registers.

CD74FCT821A uses a small-geometry BiCMOS technology. The CD74FCT821A output stage is a combination of bipolar and CMOS transistors that limits the output high level to two diode drops below VCC. This resultant lowering of output swing (0 V to 3.7 V) reduces power-bus ringing [a source of electromagnetic interference (EMI)] and minimizes VCC bounce and ground bounce and their effects during simultaneous output switching. The output configuration also enhances switching speed and is capable of sinking 48 mA.

The CD74FCT821A flip-flops enter data into their registers on the low-to-high transition of the clock (CLK). The Q outputs are noninverted data. The output-enable (OE) input controls the 3-state outputs and is independent of register operation. When OE is high, the outputs are in the high-impedance state.

The CD74FCT821A is characterized for operation from 0°C to 70°C.
