CD54/74HCT241

Features: •HC/HCT240 Inverting•HC/HCT241 Non-Inverting•HC/HCT244 Non-Inverting•Typical Propagation Delay = 8ns at VCC = 5V, CL= 15pF, TA = 25oC for HC240•Three-State Outputs•Buffered Inputs•High-Current Bus Driver Outputs•Fanout (Over Temperature Ran...

product image

CD54/74HCT241 Picture
See larger image
SeekIC No. : 004311485 Detail

CD54/74HCT241: Features: •HC/HCT240 Inverting•HC/HCT241 Non-Inverting•HC/HCT244 Non-Inverting•Typical Propagation Delay = 8ns at VCC = 5V, CL= 15pF, TA = 25oC for HC240•Three-State Ou...

CD54/74HCT241 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CD54/74HCT241
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•HC/HCT240 Inverting
•HC/HCT241 Non-Inverting
•HC/HCT244 Non-Inverting
•Typical Propagation Delay = 8ns at VCC = 5V,
  CL= 15pF, TA = 25oC for HC240
•Three-State Outputs
•Buffered Inputs
•High-Current Bus Driver Outputs
•Fanout (Over Temperature Range)
-Standard Outputs. . . . . . . . . . . . . . .10 LSTTL Loads
-Bus Driver Outputs . . . . . . . . . . . . .15 LSTTL Loads
•Wide Operating Temperature Range . . .-55oC to 125oC
•Balanced Propagation Delay and Transition Times
•Significant Power Reduction Compared to LSTTLLogic ICs
•HC Types
-2V to 6V Operation
-High Noise Immunity: NIL = 30%, NIH = 30% of VCC
  at VCC = 5V
•HCT Types
-4.5V to 5.5V Operation
-Direct LSTTL Input Logic Compatibility,
  VIL= 0.8V (Max), VIH = 2V (Min)
-CMOS Input Compatibility, Il1µA at VOL, VOH


Application


Amplifiers                amplifier.ti.com                Audio
Data Converters     dataconverter.ti.com       Automotive
DSP                         dsp.ti.com                       Broadband
Interface                 interface.ti.com               Digital Control
Logic                       logic.ti.com                      Military
Power Mgmt           power.ti.com                   Optical Networking
Microcontrollers      microcontroller.ti.com      Security
                                                                      Telephony
                                                                      Video & Imaging
                                                                      Wireless

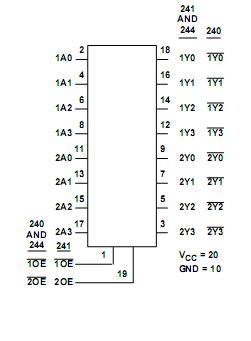

Pinout

Connection Diagram Connection Diagram


Specifications

DC Supply Voltage, VCC. . . . . . . . . . . . . . . . . . . . . . .-0.5V to 7V
DC Input Diode Current, IIK
For VI < -0.5V or VI > VCC + 0.5V. . . . . . . . . . . . . . . . . . .±20mA
DC Output Diode Current, IOK
For VO < -0.5V or VO > VCC + 0.5V . . . . . . . . . . . . . . . . ..±20mA
DC Drain Current, per Output, IO
For -0.5V < VO < VCC + 0.5V. . . . . . . . . . . . . . . . . . . . . . .±35mA
DC Output Source or Sink Current per Output Pin, IO
For VO > -0.5V or VO < VCC + 0.5V . . . . . . . . . . . . . . . . . ±25mA
DC VCC or Ground Current, ICC . . . . . . . . . . . . . . . . . . . .±70mA




Description

The'HC240and'HCT240 are inverting three-state buffers having two active-low output enables.The CD74HC241,'HCT241,'HC244and'HCT244 are non-inverting three-state buffers that differ only in that the 241 has one active-high and one active-low output enable,and the 244 has two active-low output enables.All three types have identical pinouts.
