Product Details

Description



Features:

• Buffered Inputs
• High Current Bus Driver Outputs
• Two Independent Three-State Enable Controls
• Typical Propagation Delay  tPLH,tPHL=8ns at VCC=5V,
   CL = 15pF, TA = 25°C
• Fanout (Over Temperature Range)
  - Standard Outputs. . . . . . . . . . . . . . .10 LSTTL Loads
  - Bus Driver Outputs . . . . . . . . . . . . .15 LSTTL Loads
• Wide Operating Temperature Range . . .-55°C to 12°C
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTL
   Logic ICs
• HC Types
   -2V to 6V Operation
   -High Noise Immunity: NIL = 30%, NIH = 30% of VCC

at VCC = 5V
• HCT Types
   - 4.5V to 5.5V Operation
   - Direct LSTTL Input Logic Compatibility,
     VIL= 0.8V (Max), VIH = 2V (Min)
   - CMOS Input Compatibility, Il1µA at VOL, VOH

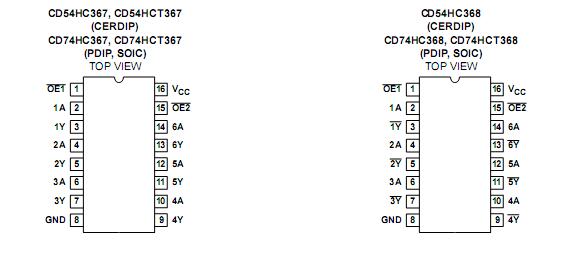

Pinout

  Connection Diagram


Specifications

DC Supply Voltage, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 7V
DC Input Diode Current, IIK
For VI < -0.5V or V> VCC + 0.5V. . . . . . . . . . . . . . . . . . . . . .  ±20mA
DC Output Diode Current, IOk
For VO < -0.5V or VO > VCC + 0.5 . . . . . . . . . . . . . . . . . . . . . . ±20mA
DC Drain Current, per Output, IO
For -0.5V < VO < VCC + 0.5V. . . . . . . . . . . . . . . . . . . . . . . . . . .±35mA
DC VCC or Ground Current, ICC . . . . . . . . . . . . . . . . . . . . . . . . ±50mA



Description

The 'HC367, 'HCT367, 'HC368, and CD74HCT368 silicon gate CMOS three-state buffer sare general purpose high-speed non-inverting and inverting buffers. They have high drive current outputs which enable high speed operation even when driving large bus capacitances. These circuits possess the low power dissipation of CMOS circuitry,yet have speeds comparable to low power Schottky TTL circuits. Both circuit sare capable of driving up to 15 low power Schottky inputs.

The 'HC367 and 'HCT367 are non-inverting buffers,where as  the 'HC368 and CD74HCT368 are inverting buffers.These device shave two output enables, one enable(OE1) controls 4 gates and the other (OE2) controls the remaining 2 gates.

The 'HCT367 and CD74HCT368 logic families are speed, function and pin compatible with the standard LS logic family.
